Utility trailer lights are the rear lighting assembly on a utility or cargo trailer: two red stop, turn and tail lamps, amber side marker and clearance lights, a rear reflex reflector and a white license plate lamp. They exist so the driver behind you can read your intentions in time, and they are not optional. Working lights are required in every US state, they get checked at registration inspections, and a dead brake lamp is the single most common reason a trailer gets rear-ended in slow traffic.
That is the whole problem with utility trailer lighting. The lamps themselves are cheap, the failure is what costs you: a cracked lens, a corroded ground, a connector pin packed with road salt, or a housing that was sold as waterproof and turned out not to be. Replacing a bulb and getting nothing is the version of this story forum regulars tell most often, and the wiring, not the bulb, is usually the culprit.
So this guide covers the best trailer lights for utility trailers the way we would want them for our own rigs: sealed housings, honest sealing claims, DOT or SAE compliance language, and enough wire included to finish the job without a second trip to the parts store. Every pick below carries a real drawback as well, because a kit that has no weakness is a kit nobody has installed yet.
Our team compared ten kits that span the full utility trailer lighting surface: complete two-light kits, surface-mount singles and pairs in square, oval and low-profile rectangular shapes, a full 14-piece side marker pack, two identification light bars, and one incandescent kit kept in the mix because replaceable bulbs still have a real use.
While we were comparing lighting for the trailer, we also pulled together our picks for the best ATV winches for utility quads, since the same weeknight-hauling logic applies to both.
Table of Contents
- Top 3 Picks for Best Trailer Lights for Utility Trailers in October
- All 10 Utility Trailer Light Picks Compared Side by Side in 2026
- 1. MAXXHAUL 70205 All-LED Kit – the Complete Starting Point
- 2. Partsam Square Submersible Pair – Best Value Per Lamp
- 3. CZC AUTO Submersible Kit – Sonic Sealing and Pure Copper Wire
- 4. Nilight 6 Inch Oval Pair – the Drop-In Replacement
- 5. CZC AUTO Low Profile Pair – Slim Housing, Two Bolt Patterns
- 6. MAXXHAUL 70094 Incandescent Kit – When Replaceable Bulbs Matter
- 7. MAXXHAUL 70460 LED Pair – the Highest Rated Set Here
- 8. Partsam 14 Piece Marker Set – One Purchase Covers the Trailer

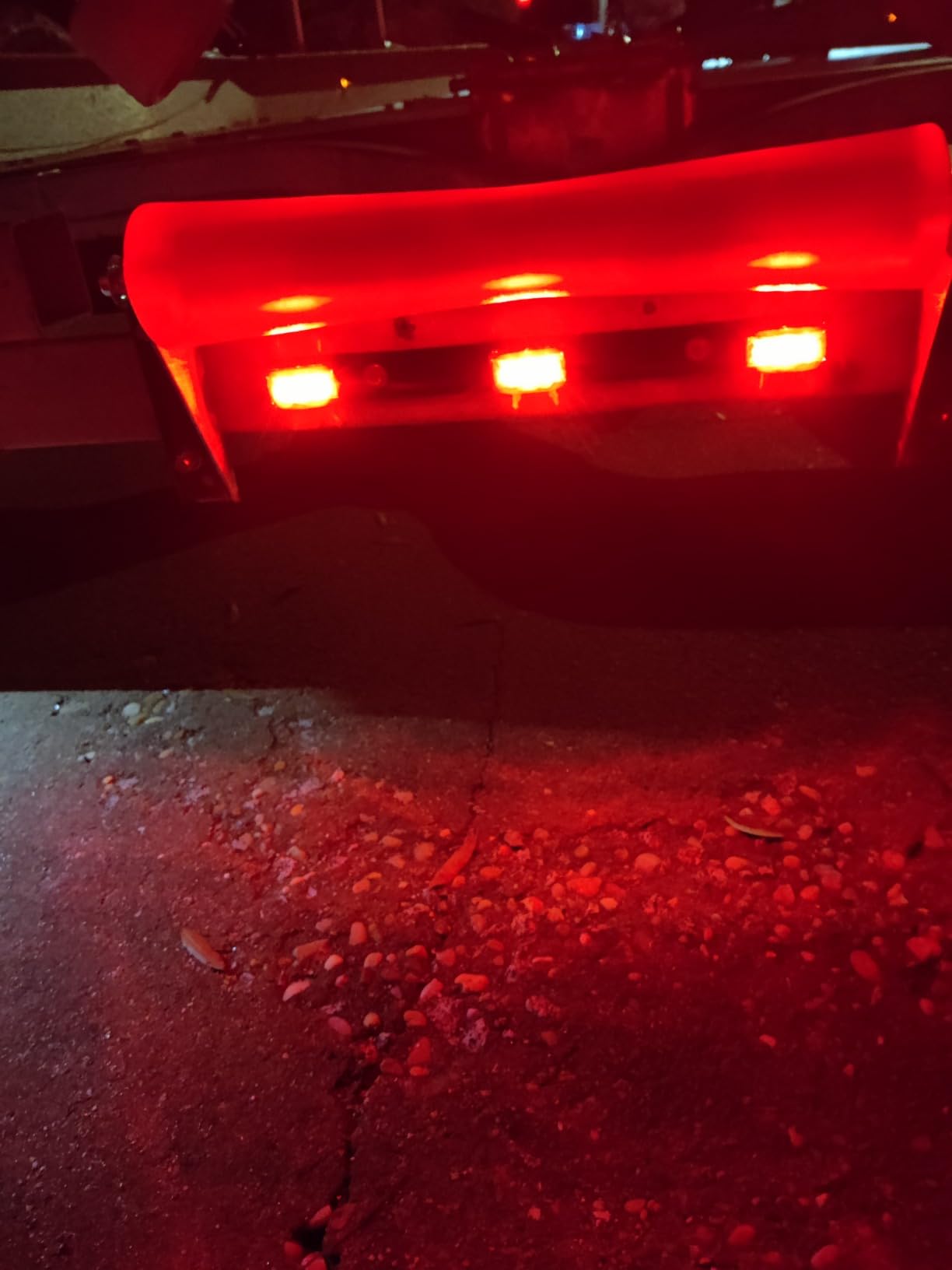

- 9. Partsam 3 Light ID Bar – Sealed Stainless Steel Identification

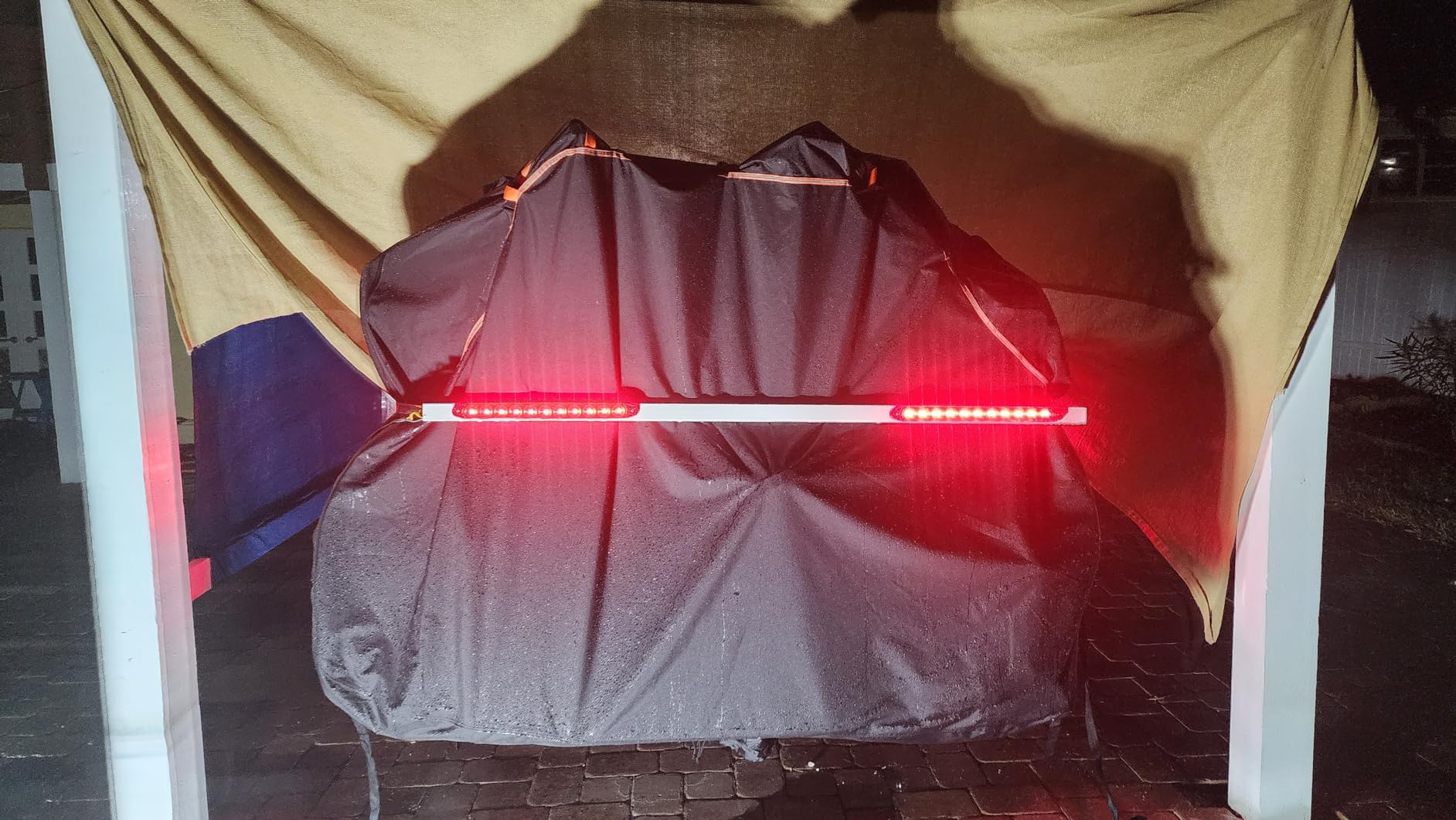

- 10. Nilight 16 Inch ID Bar 2 Pack – Maximum Rear Identification
- How to Choose Utility Trailer Lights in 2026
- What lights are required on a utility trailer?
- Are clearance lights and marker lights the same thing?
- What color must marker lights be on a trailer?
- What is the 60/40 rule for trailers?
- Are LED lights better on a trailer than incandescent?
- Waterproof or submersible? The wording that trips people up
- What are the DOT reflective tape requirements for utility trailers?
- Can you get pulled over for a marker light out?
- Four wire or 7 pin: which connector do you need?
- How to diagnose a trailer light that will not work
- Pre-trip light check and cold weather maintenance
- Frequently Asked Questions
- What are some good quality trailer lights?
- What is the 60/40 rule for trailers?
- Are there wireless trailer lights that don’t require a plug?
- Can LED trailer lights be wired differently?
- Why are my trailer lights not working?
- Can I replace incandescent trailer lights with LEDs without running new wire?
- What color do marker lights have to be on a trailer?
- Which Utility Trailer Lights Should You Buy?
Top 3 Picks for Best Trailer Lights for Utility Trailers in October
MAXXHAUL 70205 All-LED Kit
- Two 12V LED stop/tail/turn lights
- Two amber clearance lights
- 22 ft split Y color-coded harness
- License plate bracket included
Partsam Square Submersible…
- 15 and 19 diode assemblies
- IP68 sealed acrylic lens
- Square stud-mount design
- For trailers under 80 inches wide
CZC AUTO Submersible Kit
- Two 7-function LED tail lights
- 18-gauge pure copper harness
- Sonic-welded sealed housings
- DOT FMVSS 108 approved
The MAXXHAUL 70205 takes the top slot because it is the only kit in this group that arrives genuinely complete: two LED stop/tail/turn lamps, two amber clearance lights, a license plate bracket and a 22 ft color-coded Y-harness in one box, with a 4.6 star average across more than 18,000 reviews. The Partsam square pair is the value pick, and the CZC AUTO submersible kit is what we would fit to a trailer that gets dunked.
All 10 Utility Trailer Light Picks Compared Side by Side in 2026
| Product | Specs | Action |
|---|---|---|
| MAXXHAUL 70205 All-LED Kit |
|
Check Latest Price |
| Partsam Square Submersible Pair |
|
Check Latest Price |
| CZC AUTO Submersible Kit |
|
Check Latest Price |
 Nilight 6 Inch Oval Pair |
|
Check Latest Price |
 CZC AUTO Low Profile Pair |
|
Check Latest Price |
 MAXXHAUL 70094 Incandescent Kit |
|
Check Latest Price |
 MAXXHAUL 70460 LED Pair |
|
Check Latest Price |
 Partsam 14 Piece Marker Set |
|
Check Latest Price |
 Partsam 3 Light ID Bar |
|
Check Latest Price |
 Nilight 16 Inch ID Bar 2 Pack |
|
Check Latest Price |
Two columns in that lineup are worth calling out before the individual reviews. The Partsam square pair and the MAXXHAUL 70460 pair ship as lights only, with no harness, so budget for wire and connectors. Everything else in the list carries at least the wiring or the mounting hardware needed to finish the install.

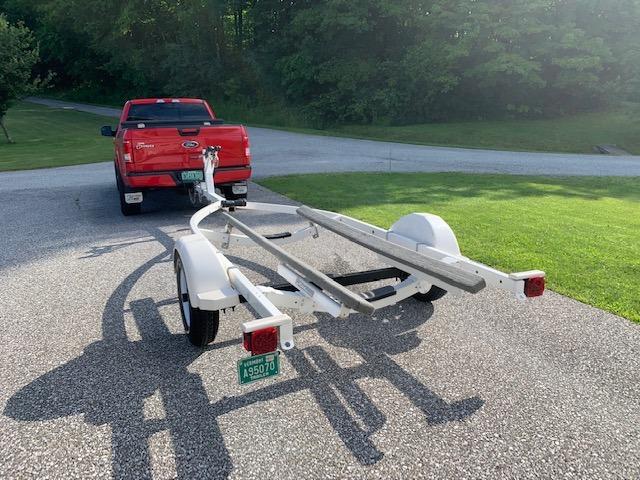

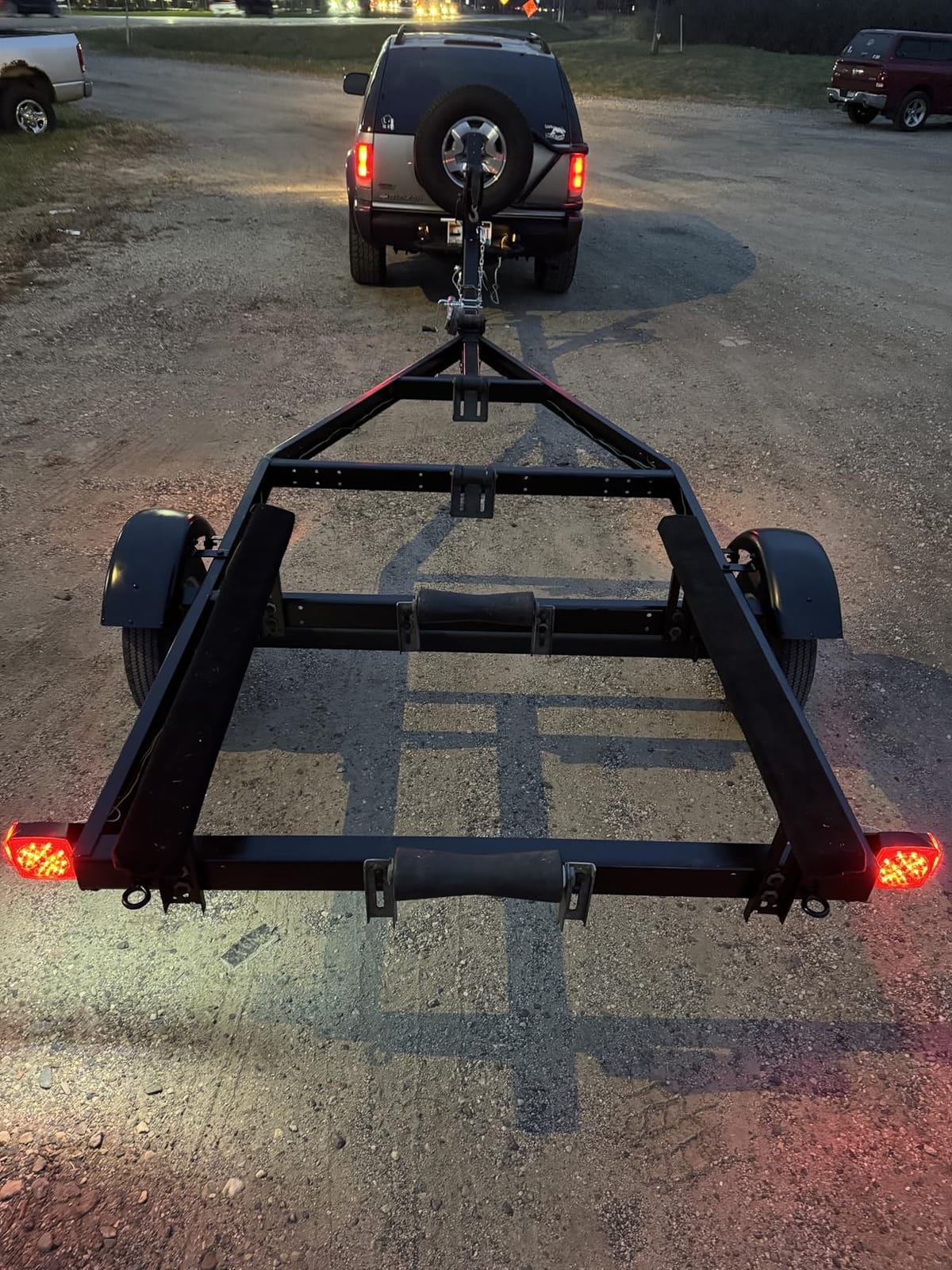

1. MAXXHAUL 70205 All-LED Kit – the Complete Starting Point
MAXXHAUL 70205 Trailer Light Kit – 12V All LED, Left and Right Waterproof Submersible for Trailers, Boat Trailer Truck Marine Camper RV Snowmobile, Red
12V all-LED kit
Stop, tail and turn plus 2 amber clearance
22 ft Y-harness
DOT FMVSS 108 compliant
Pros
- Complete kit with lights
- clearance lamps
- plate bracket and full harness
- Bright output that beats worn incandescent lamps
- Sealed housings that handled heavy rain and repeated submersion
- Color-coded harness makes install quick
- DOT compliant
Cons
- Side marker screws smaller than some existing mounting holes
- Only about 4 inches of wire exits each light
- Some LED tail lamp vehicles need load resistors
This is the kit we fit first when someone asks us to rebuild a tired lighting system from scratch. Two 12V LED stop, tail and turn lamps, two amber clearance lights, a license plate bracket and a 22 ft split Y-style color-coded UV-coated harness, all in one box, and it carries a 4.6 star average across 18,437 reviews. That volume of feedback is why it is our editor’s choice: at this point in the life of a product, patterns in the reviews stop being anecdotes.
Owners consistently describe the same upgrade pattern: old bulb lights out, these in, and the difference is visible from the driver’s seat in daylight. The sealed LED housings are reported as staying dry through heavy rain and repeated submersion, and the color-coded harness is the piece people mention most, because it removes the guesswork from a Saturday afternoon install.
The tech sheet reads 12 volts, 12 watts, plastic lens, universal fit, and a 90 day manufacturer warranty. The kit ships at 2.6 pounds and measures 12 x 11.3 x 3.7 inches, so it is a compact package that does not eat tongue-box space.
The weaknesses are real and worth planning around. Each lamp has only about 4 inches of wire exiting the housing, which is tight when you are trying to make a proper heat-shrink connection, so budget extra length and a crimp tool. The side marker screws are smaller than some existing trailer mounting holes will accept. And on vehicles running LED tail lamps, a few installers needed load resistors to stop hyper-blinking, which is a vehicle-side issue rather than a fault in the lights.
What you get for the money
For most utility trailer owners this is the shortest path to a compliant, bright rear end: lights, markers, plate bracket and full-length harness, no second purchase required. If your trailer already has good wire and you only need lamps, a cheaper pair on this list will do the same job visually.
The one scenario where it is the wrong buy is a trailer that spends its life in a saltwater environment and never gets flushed with fresh water. The sealing is good, but no light is immortal, and the short wire leads add a second joint into the system, which is where most failures actually start.
Where it falls short
Those short leads are the recurring complaint, and they matter more than they sound. Every extra splice is a place for water to sit and for the ground to rot, and the 90 day warranty is short by trailer-gear standards, so this is a fit-it-and-forget-until-it-fails purchase rather than a forever purchase.
It is also a two-light kit. If your trailer is 80 inches wide or wider, or long enough to require a full set of side markers, you will still be shopping for marker packs separately, which is exactly what pick 8 in this list covers.

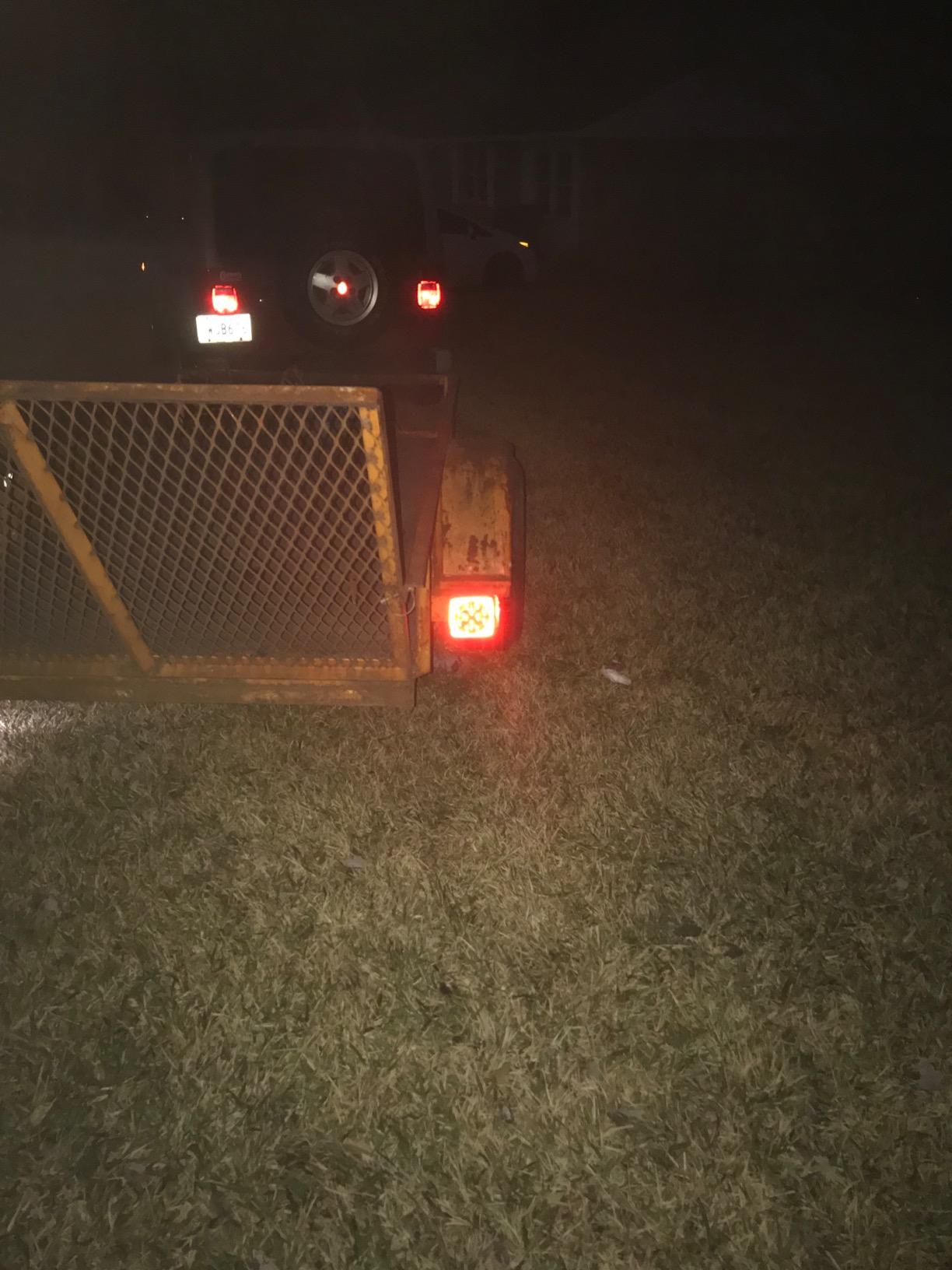

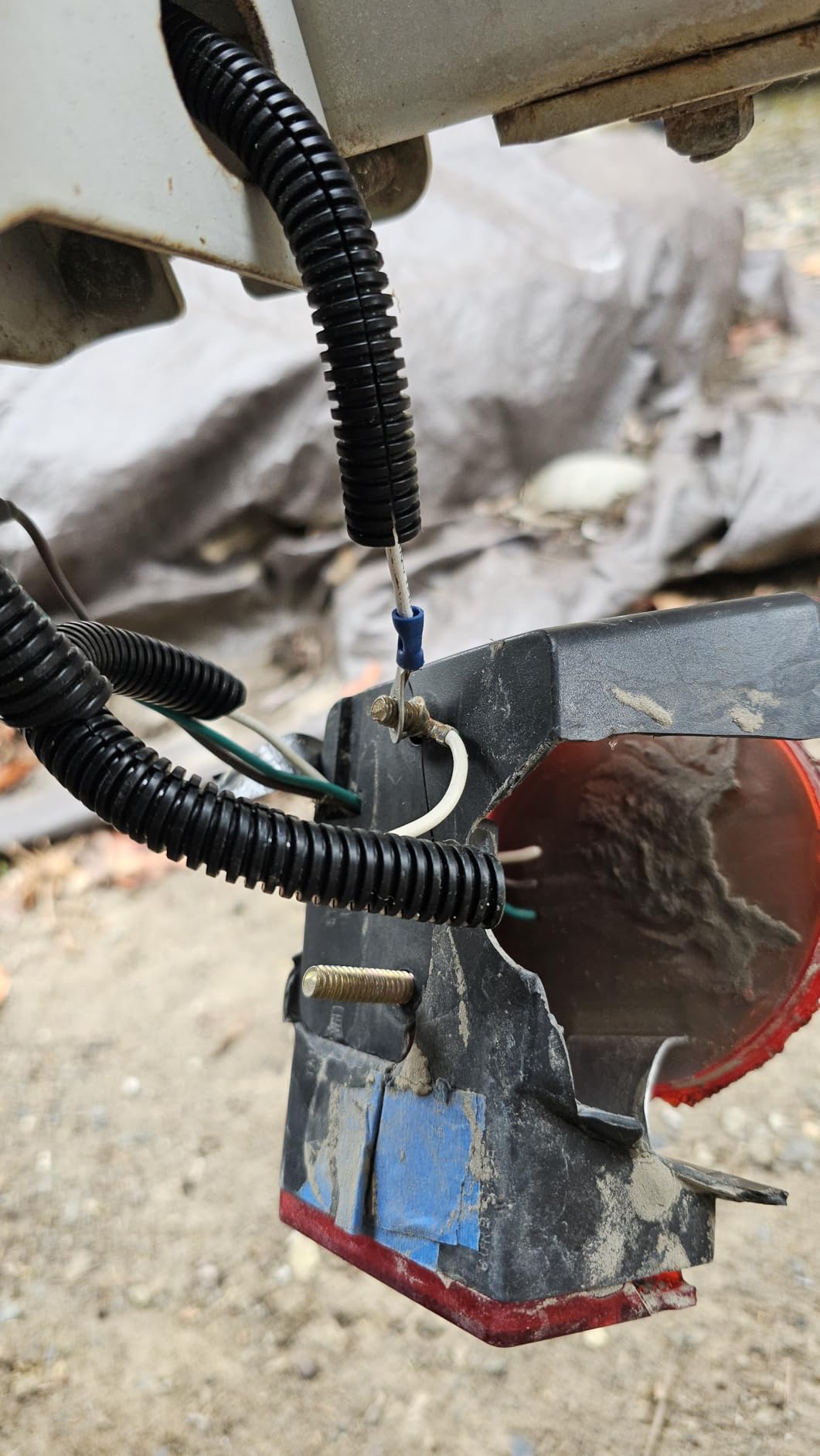

2. Partsam Square Submersible Pair – Best Value Per Lamp
Partsam 12V Submersible Square Led Trailer Light,Red White LED Stop Turn Tail License Brake Running Light Lamp for Trailers Under 80″ Boat Trailer Truck Marine Camper RV Snowmobile,IP68,DOT Compliant
12V square LED pair
15 and 19 diodes
IP68 sealed lens
DOT compliant
Pros
- Very bright in daylight and at night
- Square stud-mount fits standard trailer openings
- Color-coded heavy-gauge wires
- Contains only lights and hardware
Cons
- Wiring harness not included
- No wire connector supplied in the box
Two lamps, IP68 sealing, DOT compliance, and a 4.6 star average over 14,532 reviews. The square stud-mount design drops into standard trailer light openings, which is why it converts so many older bulb-equipped trailers for very little. The passenger-side lamp carries 15 diodes across six functions including stop, turn, tail, rear reflex and side reflector, and the driver-side lamp adds four more diodes to a seventh function, license plate illumination.
Two details stand out in the reviews. The first is the foam padding behind the housing, which stops the lens from cracking when you tighten the stud down hard, a small thing that buys real years. The second is what is not in the box: the lamps, gaskets and four screws, and nothing else. Buyers who like that it is not a box of bulky extras are the same buyers who discovered there is no harness in there.
That is the trade. You get a 1 year quality warranty instead of a 90 day one, 16 ounces of weight, and a lens described as sealed acrylic engineered to block water and protect the circuitry. Trailers under 80 inches wide are the target fit.
The square profile is also the reason it works so well for utility trailers specifically. Square stud-mount lamps are the traditional utility trailer shape, so they usually land on existing holes without drilling, which is more than can be said for several slim-profile alternatives.
What you get for the money
You get the highest diode count per lamp in this group and sealing rated to IP68, which is the spec buyers on the specialist forums treat as the real quality signal. If your existing wiring is sound, this pair is the cheapest credible path to an all-LED rear end that will not leak.
Keep the existing connector, keep the existing ground, and this is a 30 minute job with a socket set. Forum regulars who replaced worn incandescent lights with sealed LEDs report service lives measured in years rather than seasons, and that is the outcome we would expect here.
Where it falls short
There is no harness and no connector in the box. If your trailer wire is brittle, if you are running a 4-way and want a 7-pin, or if the existing harness has already been spliced twice, that cost belongs in your decision.
The other limitation is the fit envelope. These are made for trailers under 80 inches wide. On a wide equipment trailer you will still need clearance and side marker lamps, and the reflexor functions built into these lamps do not replace separate side markers on longer trailers.

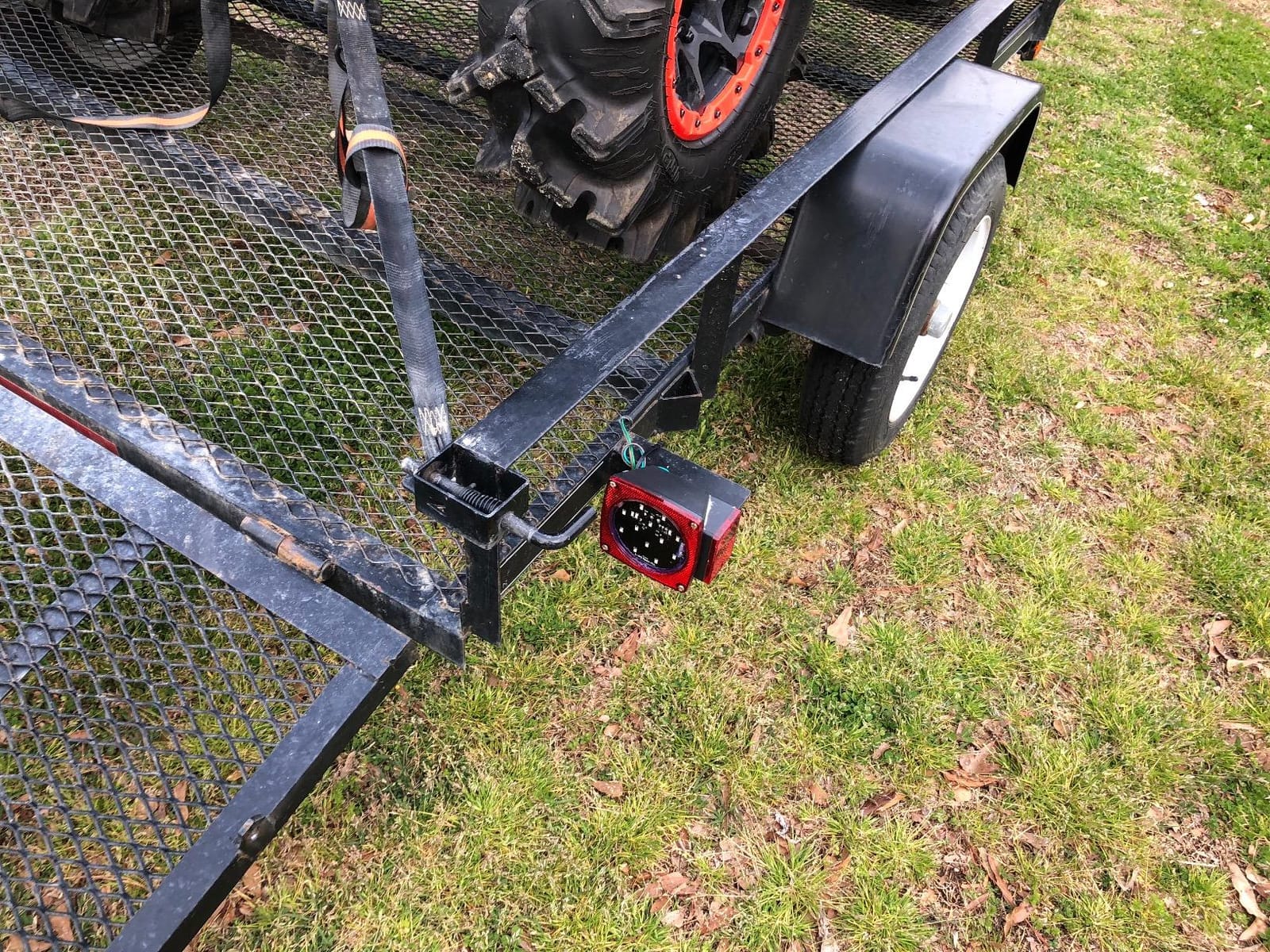

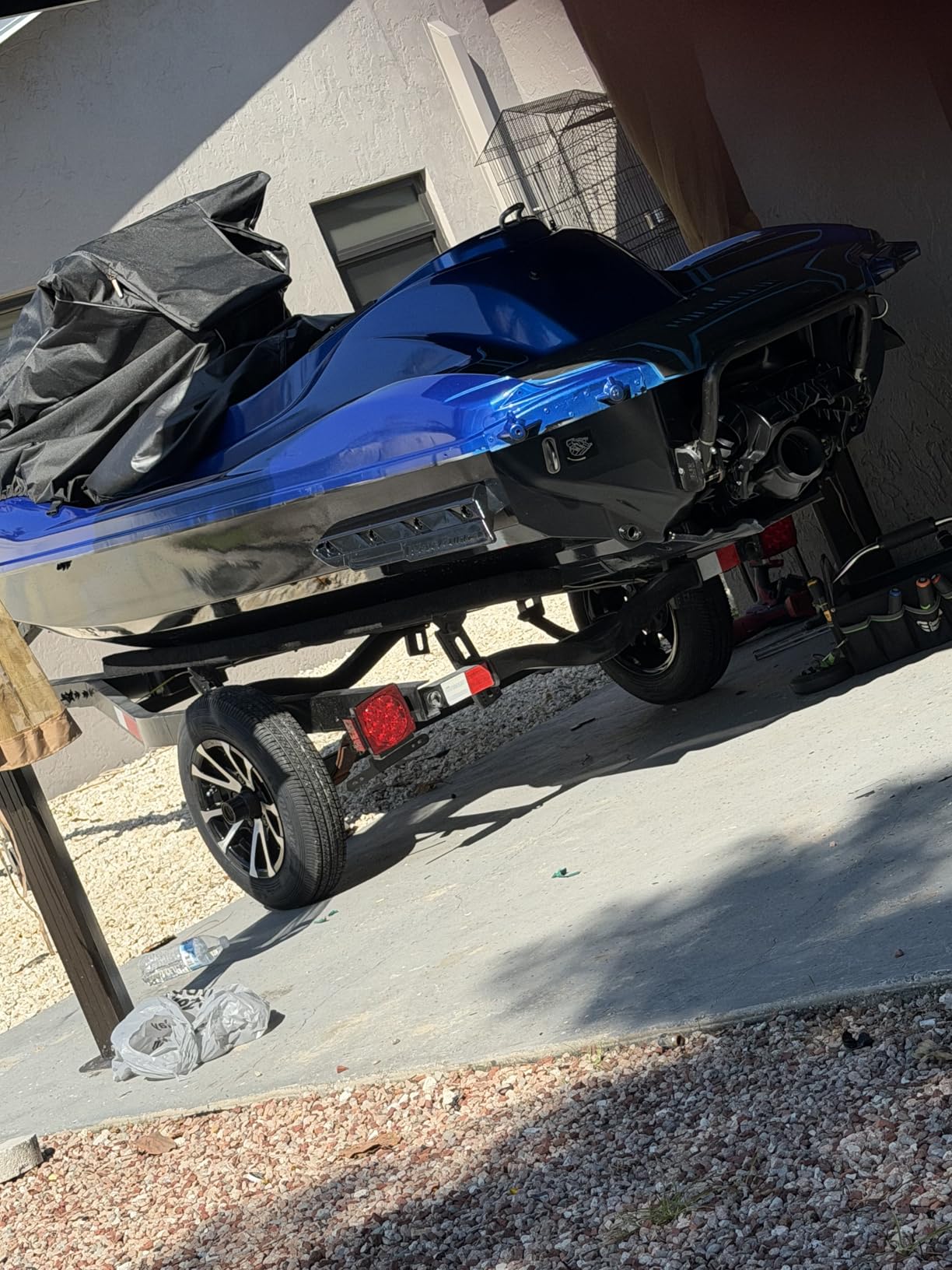

3. CZC AUTO Submersible Kit – Sonic Sealing and Pure Copper Wire
CZC AUTO 12V Submersible LED Trailer Light Kit, Under 80 Inch Boat Utility
12V submersible LED kit
Seven functions per lamp
18-gauge pure copper harness
Sonic-welded sealing
Pros
- Full harness and mounting hardware included
- All-diode design with no bulbs to fail
- Pure copper harness resists corrosion
- 12 month quality warranty
Cons
- Wiring diagram is on the instruction sheet not in the box
- Connections must be sealed before submerging
This is the kit we would trust on a trailer that goes into water. The sealing here is described as sonic welding with marine-grade glue at the lens edges and the wire entry holes, which is the construction detail that separates a genuinely submersible lamp from one that is merely splash-proof, and the harness is 18-gauge pure copper rather than the copper-clad steel common at this level. A 4.6 star average across 8,405 reviews backs that up.
Each lamp handles seven functions: stop, turn, tail, rear reflector, side reflector, side marker and license plate light. That is the most complete function set in the roundup, and it means one pair covers the rear lighting job on a trailer under 80 inches wide without a second purchase.
The unit ships at 16 ounces, measures 11.2 x 3.9 x 6.3 inches, and carries a 12 month quality warranty, which is the longest warranty in this group. The DOT FMVSS 108 certificate approval is stated on the listing, and compatibility covers boat, snowmobile, trailer and truck.
What buyers keep reporting is that the sealed housings hold up when repeatedly submerged at a launch ramp, and that the pure copper harness resists corrosion better than the wiring that came with their old trailer. For a utility trailer parked near salt or a lake, that is the whole argument.
What you get for the money
You get a complete install in one purchase, including harness, hardware and a warranty period that covers a full year of quality issues. If the trailer sees standing water, mud or road salt, the combination of sonic-welded housings and copper wire is the best insurance in this list.
It is also a reasonable pick for a plain utility trailer that never sees water, purely because seven functions per lamp reduces the number of separate lamps you have to seal and mount.
Where it falls short
The wiring diagram is printed on the instruction sheet rather than supplied loose in the box, which sounds trivial until you are standing at the tongue with cold hands. Plan ten extra minutes to trace it before you start splicing.
And the kit cannot be submerged blindly. If your butt connectors are not sealed, water will find them no matter how good the lamps are, so the sealing discipline at the harness end is entirely on you.

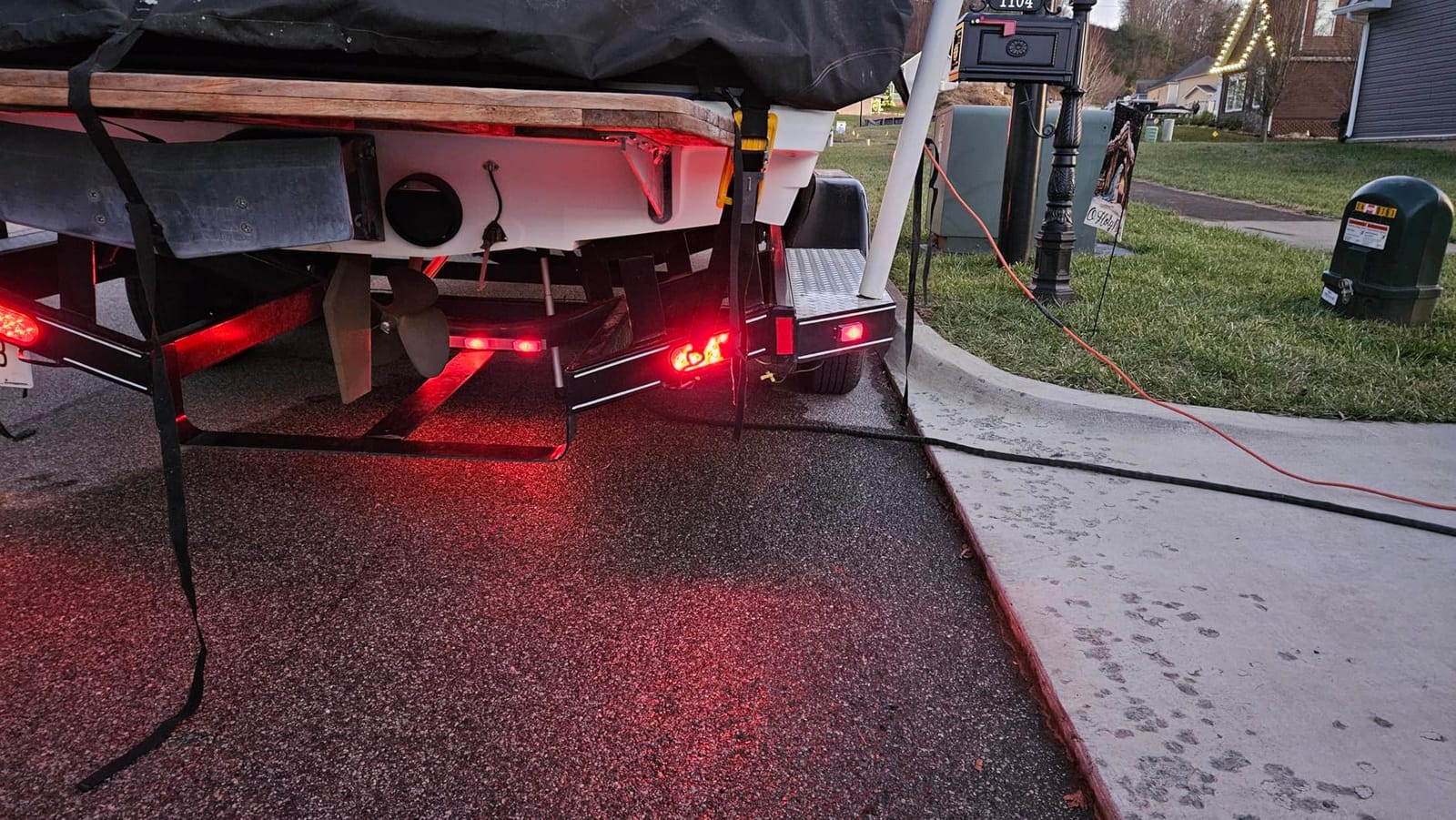

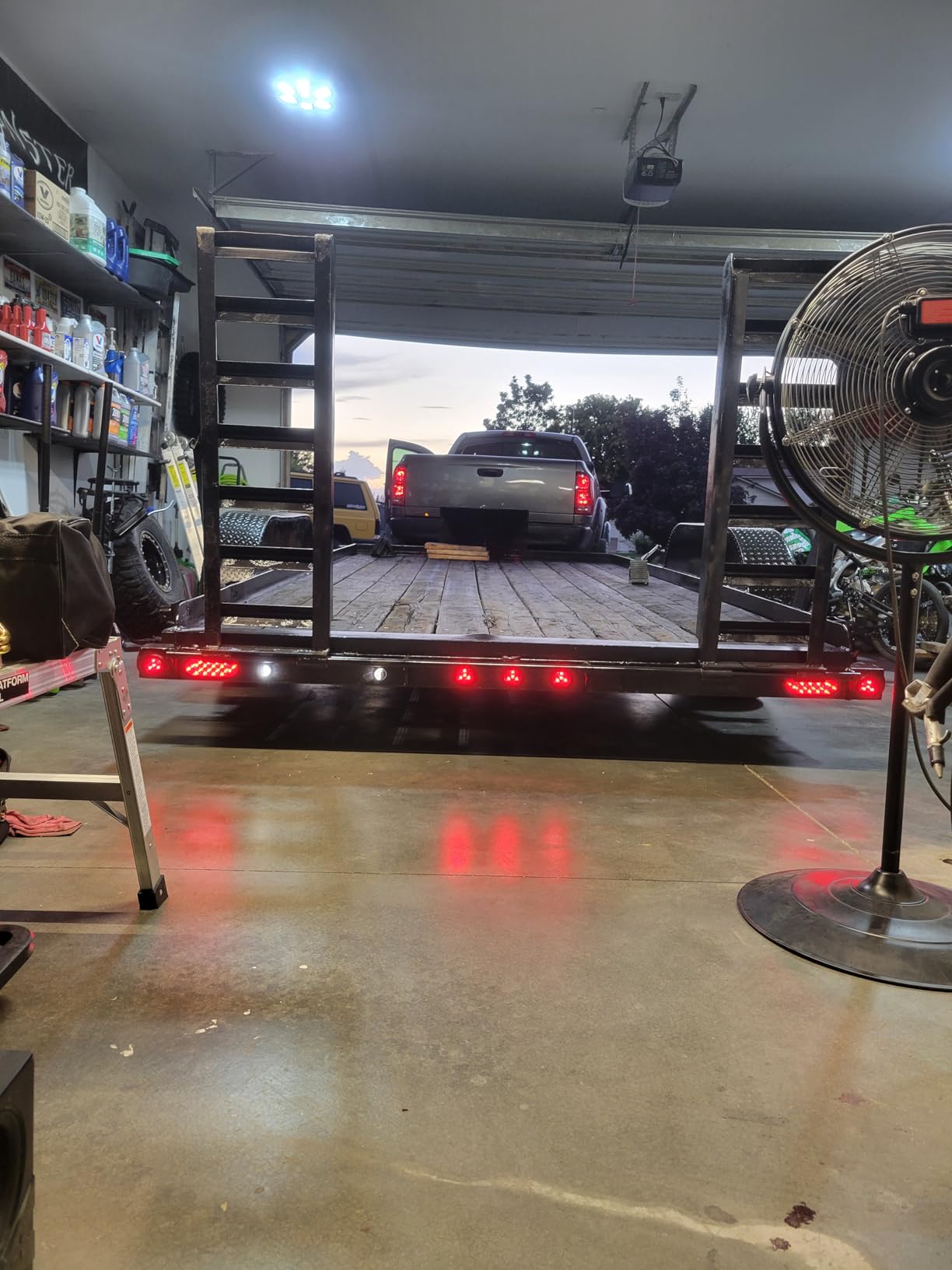

4. Nilight 6 Inch Oval Pair – the Drop-In Replacement
Nilight 6″ Oval LED Trailer Tail Lights,Red, 2 Pack, Grommets Mount
6 inch oval LED pair
10 SMD LEDs per lamp
IP65 silicon sealed
3-prong plug attachment
Pros
- Plug-and-play swap for existing bulb lights
- Thin profile and modern styling
- Soft grommets ease mounting
- Good brightness in direct sun
Cons
- Grommet may not fit oversized openings
- Some trailers need the original gasket retained
Ten SMD LEDs per lamp, a 6 inch oval lens, polycarbonate material and a 2 year warranty in a pair that carries a 4.6 star average over 6,956 reviews. The lens emits high brightness for turn and brake and drops to low brightness for tail, which is the standard behavior for a quality LED stop, tail and turn assembly.
The case for this one is speed. The standard 3-prong plug attachment means you can usually swap existing oval bulb lights in minutes without touching the harness, and the soft rubber grommets make the job manageable one-handed. Several reviewers note that the notched grommet and reinforced ear tabs hold the lamp tight enough to stop the shake that cracks lenses over time.
Spec sheet: 12 volts, 18 watts, IP65 silicon-sealed waterproof housing, universal fit for truck and trailer, measuring 6.6 x 2.5 x 1.75 inches. It is the thinnest profile in the roundup, at 1.75 inches deep.
IP65 is the rating to hold in mind here. It means protected against dust and low-pressure water, which covers rain, road spray and a pressure wash, but it is not the same claim as full submersion. If your trailer launches a boat, this is not the pick.
What you get for the money
You get the cleanest, fastest upgrade in this list for a trailer that already has oval lamp openings and working wire. The low profile also means less to catch on brush, and the current look matches modern horse and cargo trailer styling if appearance matters to you.
Two lamps at this spec level is a sensible spend for a landscaping or equipment trailer that lives outdoors and gets rained on rather than submerged.
Where it falls short
Grommet fit is the recurring caveat. On trailers with larger-than-standard light openings, the included grommet can sit loose, and a few owners keep the original gasket to get a tighter seal. Measure your opening before ordering.
There is also no clearance or side marker lighting in the box, so a wide trailer needs the marker pack in pick 8 on top of this.

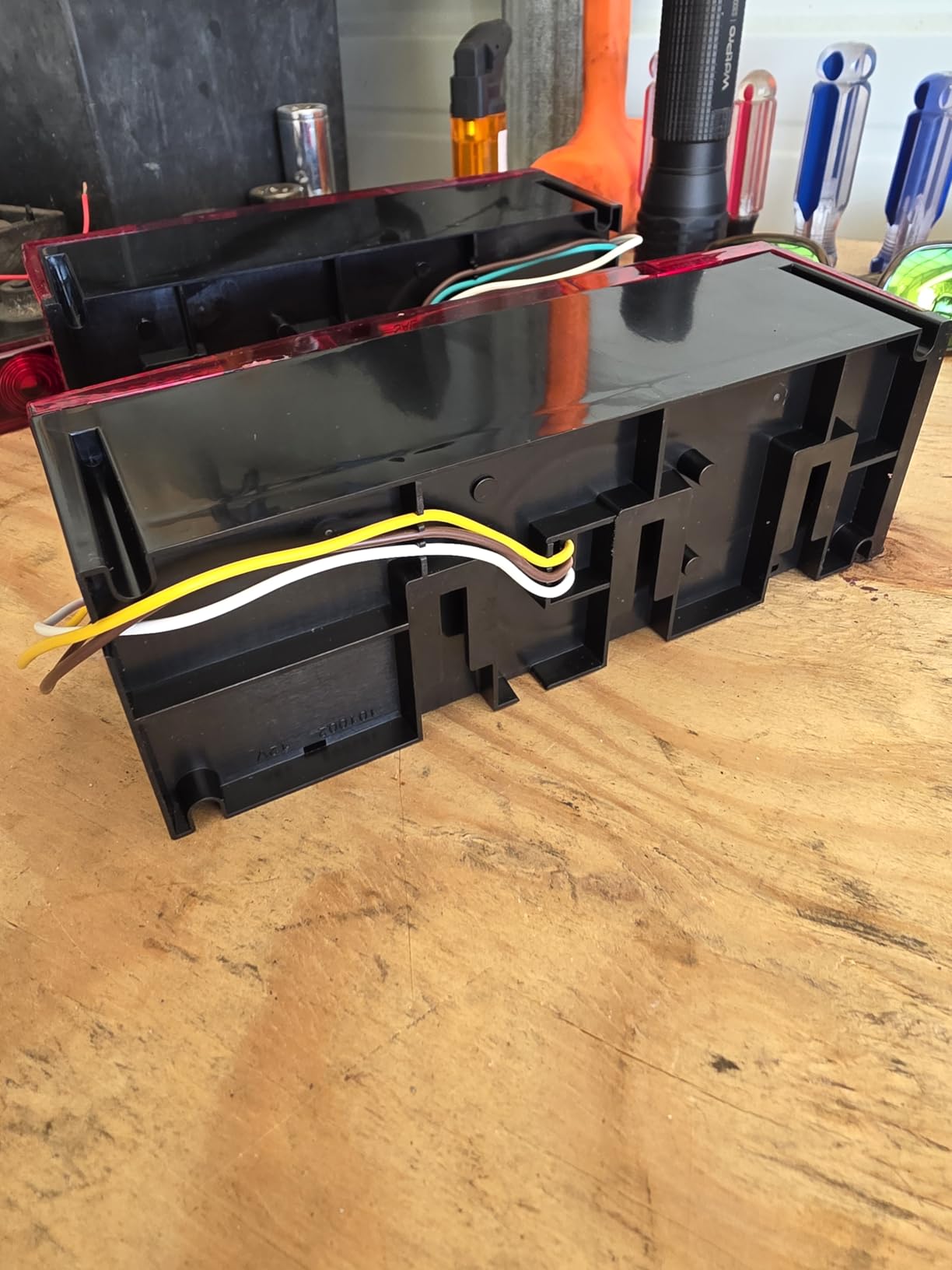

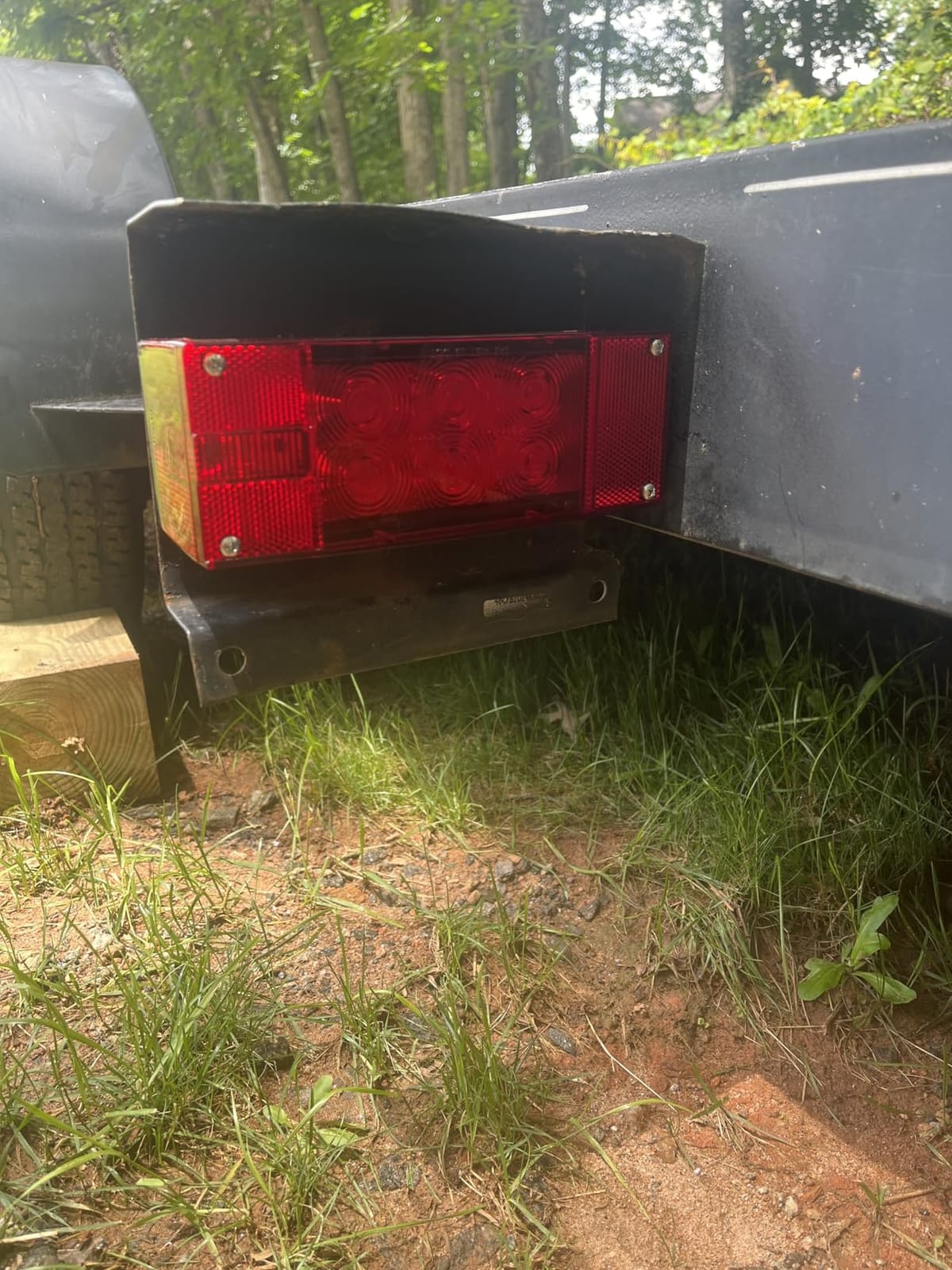

5. CZC AUTO Low Profile Pair – Slim Housing, Two Bolt Patterns
CZC AUTO 2PCS 12V LED Submersible Low Profile Rectangular Trailer Lights
12V low profile LED pair
Stop, running, turn and plate light
IP68 sonic welded
18-gauge copper wiring
Pros
- Much brighter than original lights on older trailers
- Housings stay watertight after months on a boat
- Fits existing mounts for a plug-in style upgrade
- Two different bolt patterns
Cons
- Mounting holes may need drilling on some brands
- Not a true low-clearance fit on every frame
The low profile rectangular housing in this pair is the one we recommend when a full-size square lamp will not physically fit, and its 3 watt draw is the lowest in the roundup. It combines stop, running, turn signal and license plate illumination in a low profile shell, rated IP68 with sonic welded whole-sealing, and it works on trailers over and under 80 inches wide, which is unusual flexibility.
Reviewers highlight the brightness jump over original lights on older boat and pontoon trailers, and the fact that the housings were still watertight after months of service. The two different bolt patterns are the practical win: they broaden the fit across trailer brands instead of locking you into one frame layout, and a mounting hardware bag plus instructions are included.
It is 12V, universal fit, and the wiring is 18-gauge pure copper, the same spec as pick 3, which is a reasonable signal for how the brand approaches water exposure.
The testers who like this lamp most are the ones replacing lights on an existing mount. It fits existing Trailstar and Backtrack mounts for a plug-in style upgrade, which is exactly the situation where a thin rectangular lamp lines up with the existing holes.
What you get for the money
You get a sealed, low draw, DOT standard tested assembly that clears tight frames and reflects less at night from following vehicles. The 3 watt figure matters more than it sounds, because a lower draw means less load on a small trailer connector and a tow vehicle with an aging electrical system.
For a boat trailer with corrosion problems, the IP68 rating and copper wiring are the reason this pair earns its place rather than the Nilight ovals in pick 4.
Where it falls short
Hole spacing is the consistent caveat. It does not line up with every trailer brand, and some owners report drilling to fit, so measure the existing hole pattern before you commit.
It is also not a true low clearance fit on every trailer frame despite the low profile name, which matters if your trailer has a tight ramp or storage situation.

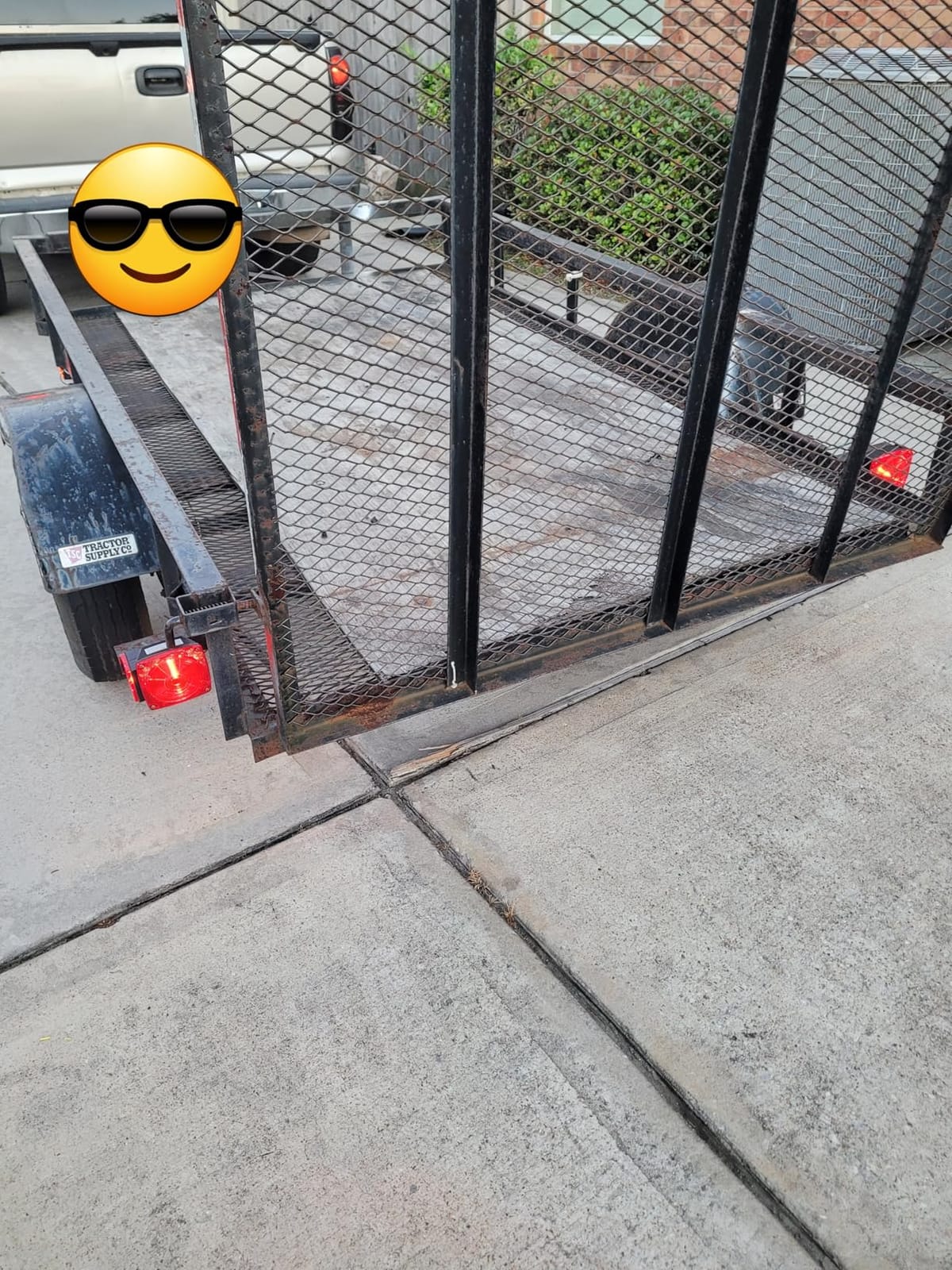

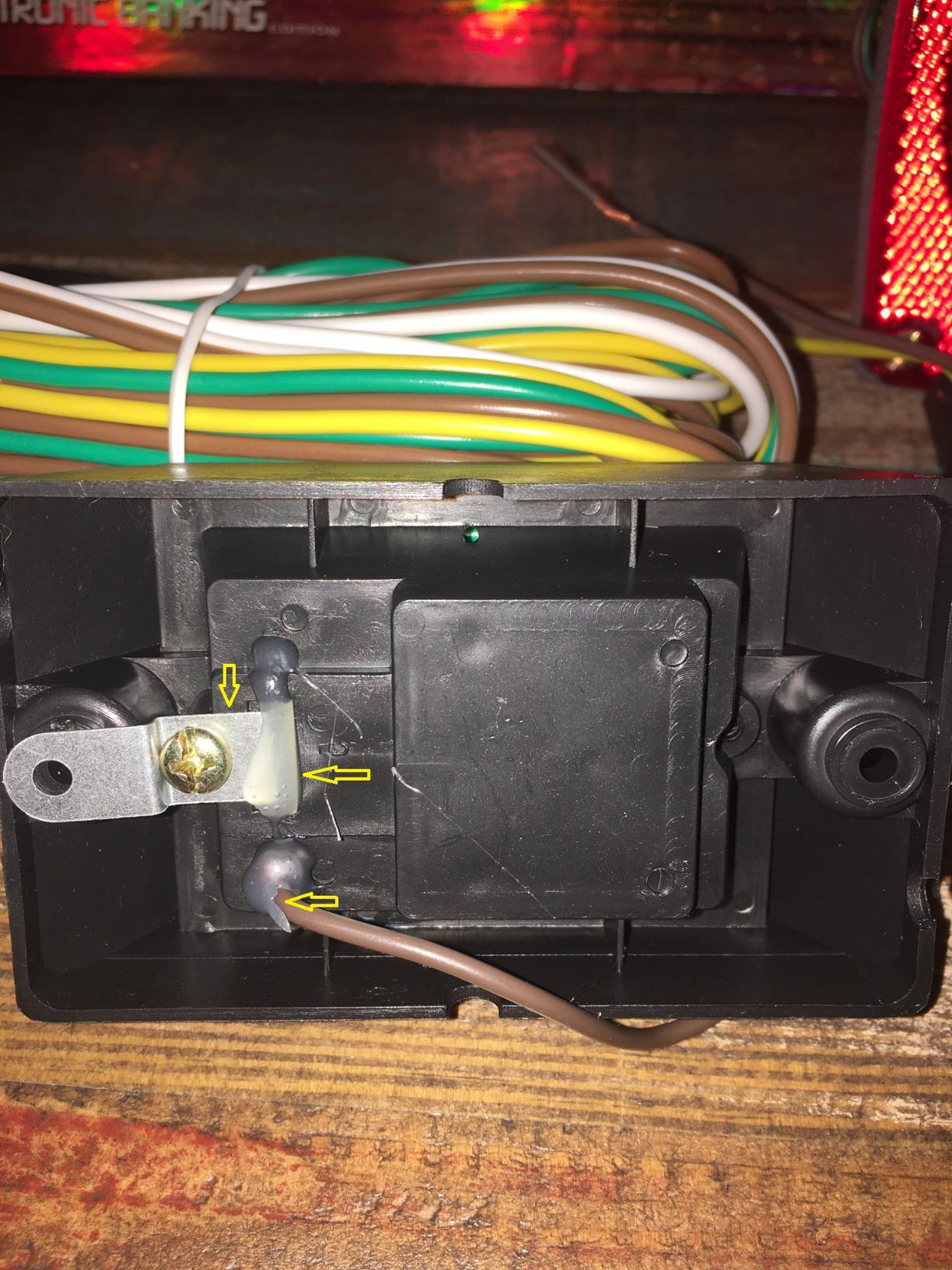

6. MAXXHAUL 70094 Incandescent Kit – When Replaceable Bulbs Matter
MAXXHAUL 70094 12V Incandescent Trailer Light Kit | Stop, Tail, Brake, Turn Lights | License Plate Light Included | Stud-Mount Design | DOT Compliant | Fits Utility, Cargo, Camper, RV, Truck Trailers
12V incandescent kit
25 ft Y-harness
4.5 x 5 inch lenses
Stud-mount grounding
Pros
- Complete kit with harness clips and taps
- 25 ft harness usually covers a full trailer
- Bulbs individually replaceable
- Stud-mount grounding for a clean install
Cons
- Dimmer than LED kits in daylight
- Not rated for submersion or salt water
- One side marker can blink if wired wrong
We keep one incandescent kit in every roundup on purpose. This MAXXHAUL set has a 4.6 star average across 6,594 reviews, ships with a 25 foot split Y-style harness with four feet of 4-pole color-coded copper wiring, and has been a long-running owner favorite for utility and boat trailers. The reason to still consider it is bulb serviceability: you unscrew the bezel and swap a bulb, which no sealed LED assembly allows.
The 25 foot harness length is the detail that wins over LED alternatives for a full-size trailer, because you rarely end up splicing to extend it. The 4.5 x 5 inch lenses are larger than most of the LED options here, which helps visibility, and the stud-mount design grounds through the mounting studs for a tidy install with no extra ground wire to run.
Two amber clearance lights, a license plate light and a mounting bracket are included, and the kit is DOT compliant for trailers under 80 inches wide. Weight is 2 pounds, rated at 8 watts and 12 volts.
Buyers note the output is dimmer than comparable LED kits in daylight, which matters more for daytime hauling than most people expect. Owners also flag that it is not advertised or rated as waterproof, so salt water use needs extra sealing work on your side.
What you get for the money
You get the most complete all-in-one package in the roundup, including clips and taps, and a harness long enough for a full trailer. For someone restoring a trailer that has been sitting for a decade with no usable wiring, the completeness is genuinely valuable and saves a second parts run.
It is also the kit we would choose for a trailer used only in dry, sheltered conditions where lamp failure is rare and replacement is easy.
Where it falls short
It is not sealed for submersion, and it is the only incandescent set here, so the LED advantage on brightness, heat and service life does not apply. Occasional units arriving with a non-working light are also reported, so test every circuit before you button everything up.
One more wiring note: a side marker can blink instead of showing solid if the harness is connected incorrectly, which sends people chasing a bulb that is perfectly fine.

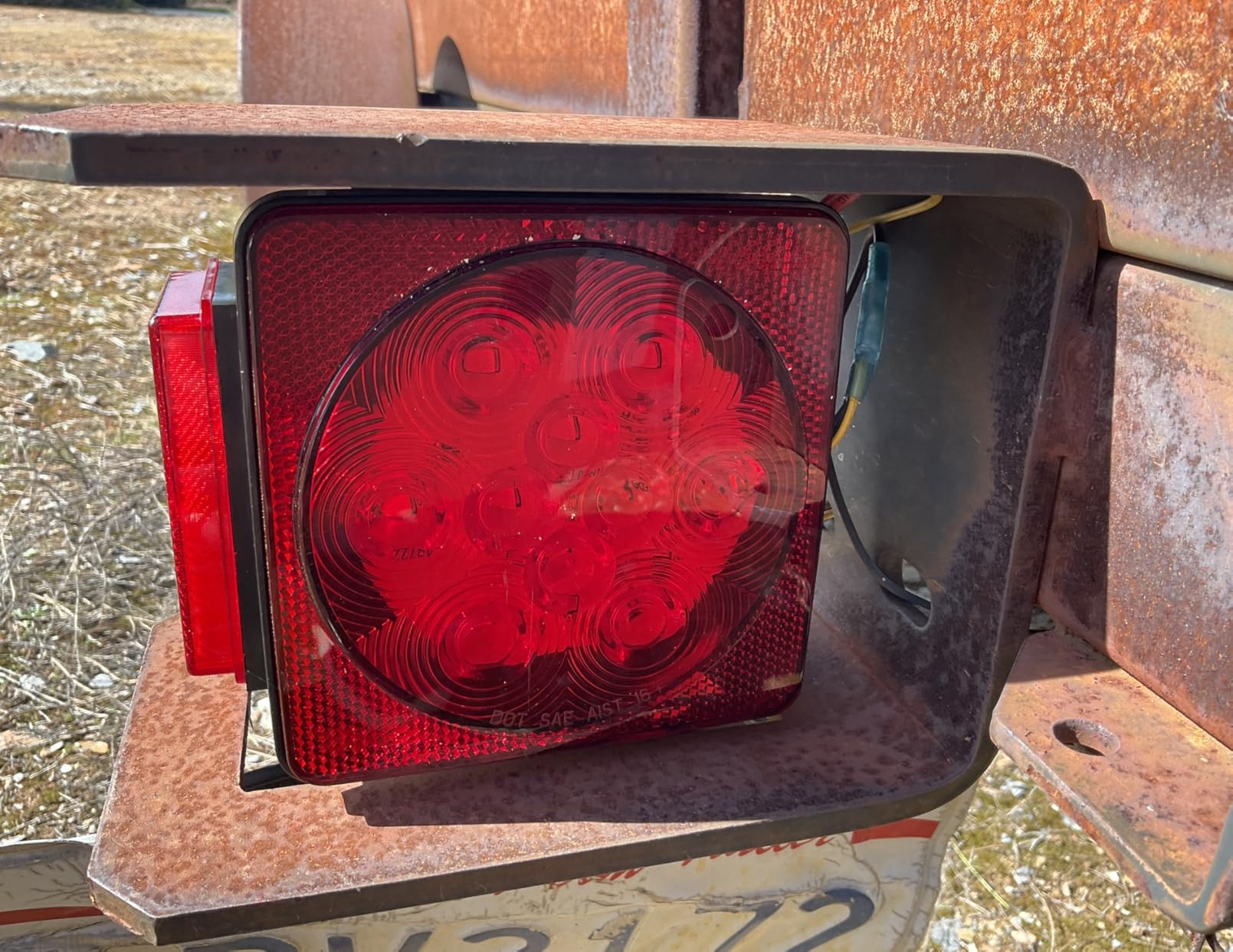

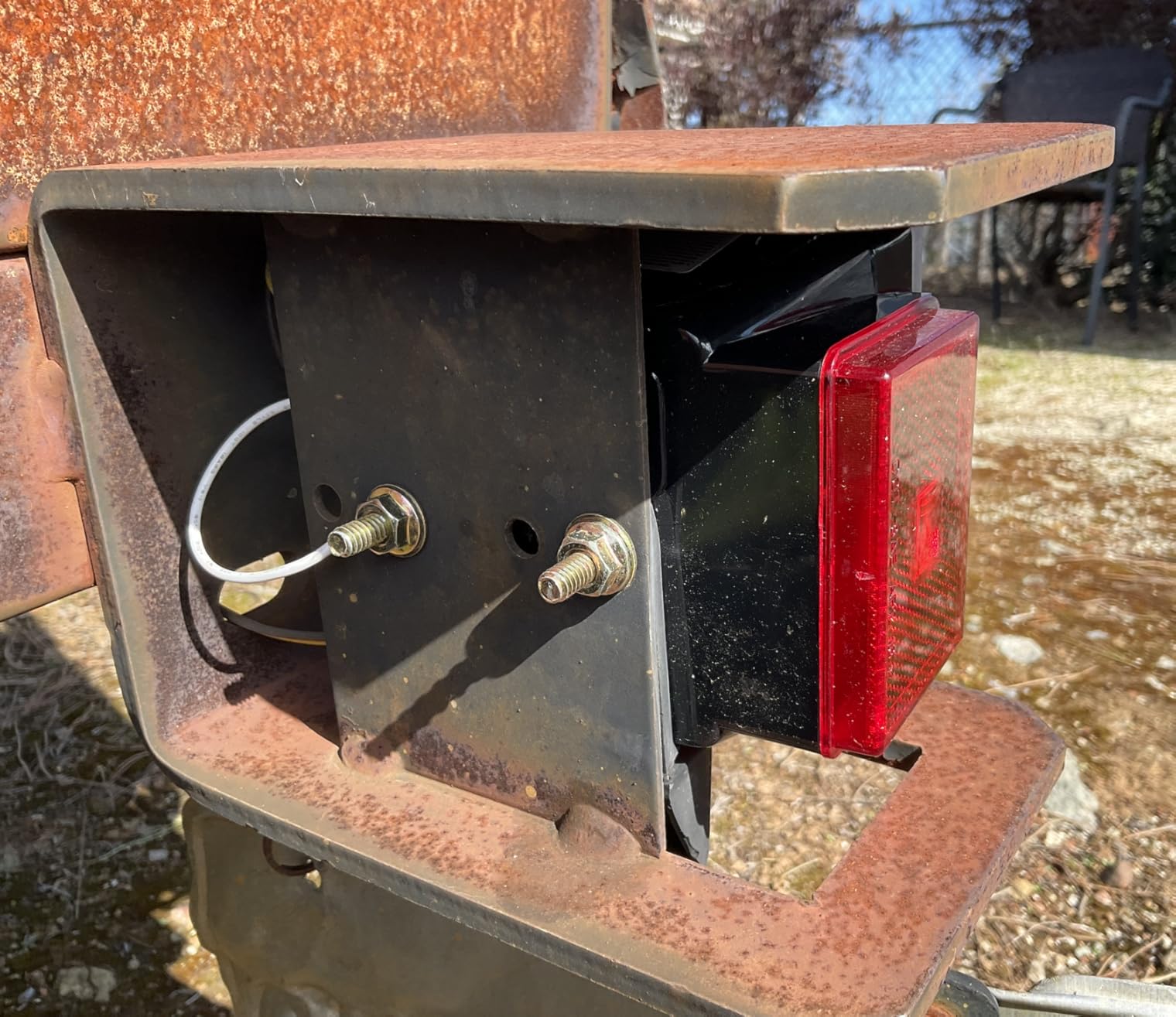

7. MAXXHAUL 70460 LED Pair – the Highest Rated Set Here
MAXXHAUL 70460 12V LED Trailer Tail Lights (Turn/Stop/Signal-Left/Right-DOT Compliant)
12V LED pair
High intensity output
Built-in plate light on driver side
2-bolt stud mount
Pros
- Highest average rating in this group at 4.7 stars
- Bright high-intensity LED output
- Integrated license plate lighting
- Simple 2-bolt stud mount with nuts
Cons
- Sold as lights only so harness and markers are separate
At 4.7 stars this is the highest rated pair in the group, and it is also the most stripped back: a single pair of 12V LED tail lights, left and right, with a 1 year manufacturer warranty. The left-hand unit carries four white LEDs for license plate illumination built into the housing, which is the feature that separates it from a plain swap.
At 3 watts and 1.4 pounds, this is the second-lowest draw in the roundup, and the 2-bolt stud installation with nuts included is the simplest mounting in the list. It is DOT compliant for trailers 80 inches and under, and the multi-function output covers tail, turn signal and brake.
Owners highlight brightness for road visibility and the fact that plate illumination is integrated rather than a separate bracket lamp that can get knocked off. The whole point of this pair is that you can rebuild a basic rear lighting setup without buying a kit with parts you do not need.
What you give up is everything outside the lamp itself. There is no harness, no clearance light and no plate bracket in the box, so this is a component purchase for someone whose trailer wiring is already sound.
What you get for the money
You get the highest rated rear lamp pair here, the lowest current draw alongside pick 5, and plate lighting in the same housing, which removes one more mounting job from the list. It is the cleanest choice for a well-equipped trailer that only needs new lamps.
We would also pair it with the marker set in pick 8 on a wide trailer, since the side marker requirement does not disappear because the rear lamps are new.
Where it falls short
It is lights only. On a trailer with no existing harness, you are buying wire, connectors and a ground before this pair is functional, and the total cost of the job rises quickly.
There is also no reflector function listed and no clearance lamp, so compliance on a wide or long trailer still depends on other components.
8. Partsam 14 Piece Marker Set – One Purchase Covers the Trailer
Partsam 14x Trailer RV Marker LED Light Double Bullseye 10 Diodes Clearance Light Red/Amber,[DOT Approved] 4×2 Tiger Eye/Double Bubble 12V Rectangular LED Side Marker Light Surface Mount Camper Truck
14-piece marker set
7 amber and 7 red
DOT approved
Sealed 4 x 2 inch lamps
Pros
- Covers a whole trailer marker light needs in one purchase
- Correct side-specific amber and red split
- Sealed rectangular housings for exterior fender mounting
- DOT approved for clearance and marker duties
Cons
- Wire exits at the lower corner rather than the center
- Individual lamps are small at about 4 x 2 inches
Seven amber and seven red DOT approved LED side marker lamps in one package, rated at 100,000 hours of operating life. This is the pick that solves the problem everyone underestimates: a trailer that is 80 inches wide or longer needs side markers and clearance lights spread along the frame, and buying them one at a time is a slow way to spend a Saturday.
![Partsam 14x Trailer RV Marker LED Light Double Bullseye 10 Diodes Clearance Light Red/Amber,[DOT Approved] 4x2 Tiger Eye/Double Bubble 12V Rectangular LED Side Marker Light Surface Mount Camper Truck customer photo 1](https://www.shortfilmcentral.com/wp-content/uploads/2026/10/B01N5WFEE5_customer_1.jpg)
Each lamp measures about 4 x 2 x 1 inches, with wires exiting from the lower corner of the housing. The set is a universal surface mount for RV, trailer, camper and boat applications, rated at 12 volts and 6 watts, and the total weight for the fourteen lamps is 1.6 ounces.
The amber and red split is what makes this useful rather than generic. Amber goes at the front and along the forward side marker positions, red toward the rear, and having both colors in the right quantity means you can place them correctly the first time rather than ordering twice.

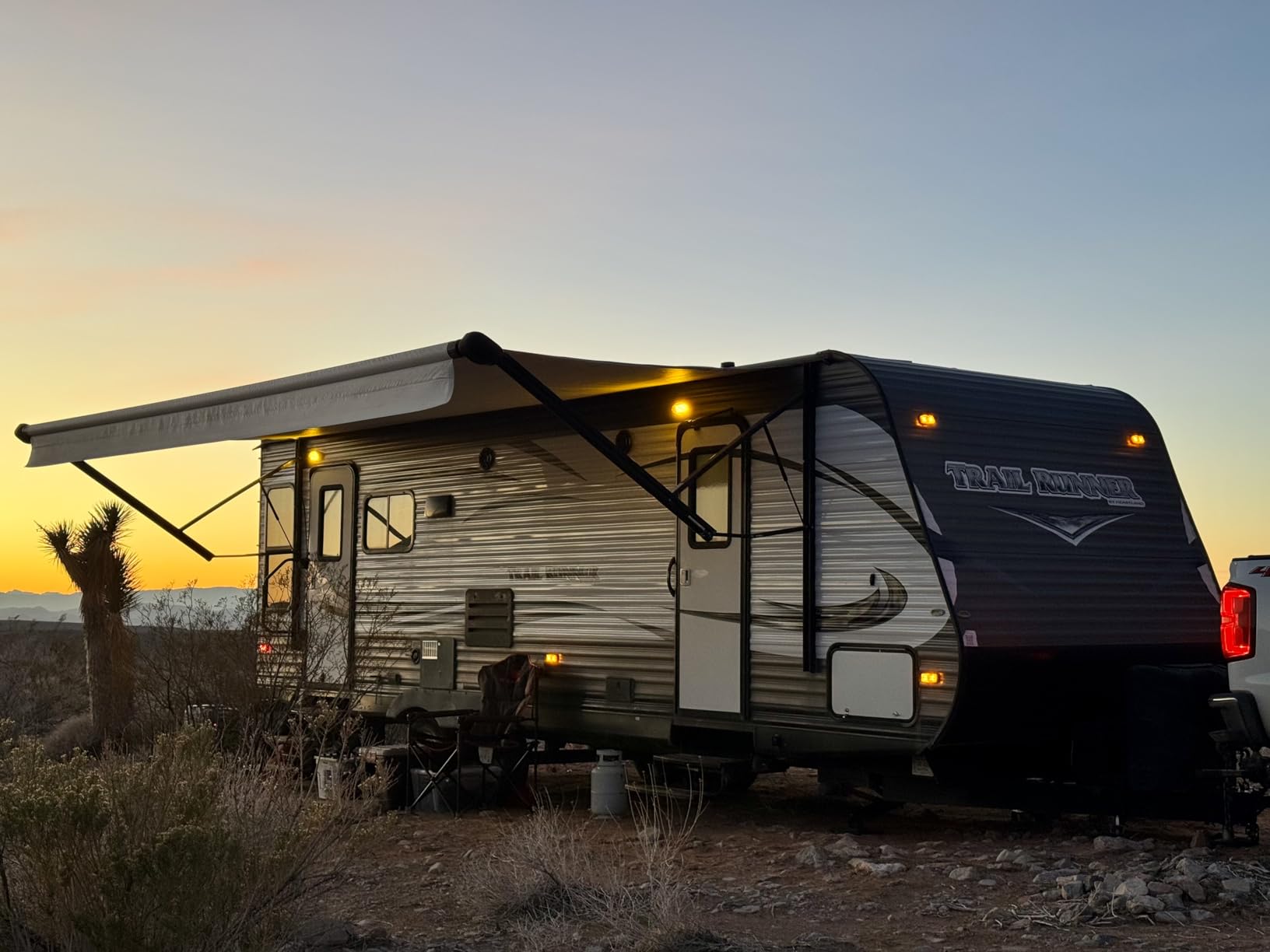

Owners use this to outfit an entire trailer or camper in one go, and the sealed rectangular housings suit exterior fender mounting where spray hits hardest.
![Partsam 14x Trailer RV Marker LED Light Double Bullseye 10 Diodes Clearance Light Red/Amber,[DOT Approved] 4x2 Tiger Eye/Double Bubble 12V Rectangular LED Side Marker Light Surface Mount Camper Truck customer photo 2](https://www.shortfilmcentral.com/wp-content/uploads/2026/10/B01N5WFEE5_customer_2.jpg)
What you get for the money
You get DOT approval for side marker, clearance and identification functions, in quantities that cover a full-length trailer, with a rated operating life of 100,000 hours per lamp. Nothing else in this roundup addresses marker coverage at all.
If your trailer is 80 inches or wider, this is not an optional accessory. It is the part of the compliance puzzle people leave until an inspection reminds them.
Where it falls short
The lower-corner wire exit is the honest caveat. Some product imagery implies a centered exit, and if you have drilled a center hole already, that mismatch is your problem to solve. The lamps are also small, at roughly 4 x 2 inches, so they read as discreet rather than as high-visibility markers on a long trailer.

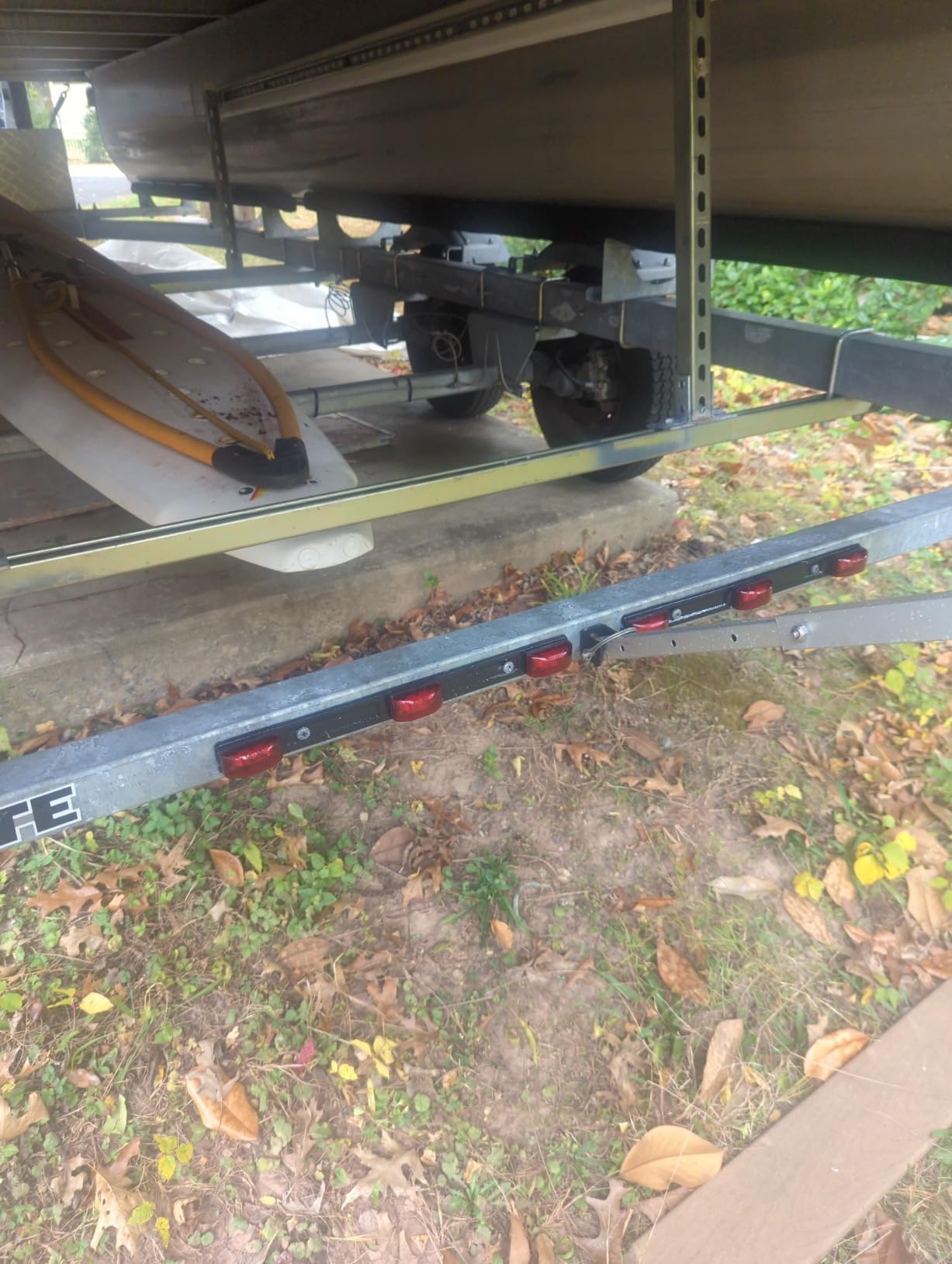

9. Partsam 3 Light ID Bar – Sealed Stainless Steel Identification
Partsam Red Clearance ID BAR Marker Light 3 Light 9 LED Trailer Sealed Stainless Steel, [DOT Approved] Sealed 3-Light Truck and Trailer Identification LED Light Bar Red Led Strip w/Black Base
3 light ID bar
9 LEDs total
IP67 sealed housing
Stainless steel base
Pros
- Bright clear red LEDs versus 174 incandescent fixtures
- Sealed stainless housing resists water
- dust and corrosion
- Single power lead makes the swap quick
- Low profile adds visibility without bulk
Cons
- No ground wire included and painted stainless may not ground
- Included screws are wood screws
- Installation needs basic wiring knowledge
A DOT approved three-light identification bar with nine LEDs total on a sealed red lens, at 5 watts and 12 volts. This is the direct upgrade path for the faded 174 incandescent identification bars that fade out on trailers over 80 inches wide, and at 14.17 inches long with 8.50 inch hole spacing it fits a standard ID bar footprint.
![Partsam Red Clearance ID BAR Marker Light 3 Light 9 LED Trailer Sealed Stainless Steel, [DOT Approved] Sealed 3-Light Truck and Trailer Identification LED Light Bar Red Led Strip w/Black Base customer photo 1](https://www.shortfilmcentral.com/wp-content/uploads/2026/10/B015SH93PM_customer_1.jpg)
The housing is IP67 sealed with a stainless steel base, and that combination is what the reviews keep praising. Owners report it shrugging off water, dust, snow and corrosion, and the single power lead means the swap from an incandescent bar is quick because you are not tracing three separate wires.
Grounding happens through the mounting hardware, which is convenient in theory and is the most common installation complaint in practice. The recessed negative screws do not always bite into painted stainless steel, so several owners end up fabricating a ground wire to get a solid connection.
That is a real issue, because a poorly grounded LED bar is the classic cause of a light that flickers or fails to register at all.
![Partsam Red Clearance ID BAR Marker Light 3 Light 9 LED Trailer Sealed Stainless Steel, [DOT Approved] Sealed 3-Light Truck and Trailer Identification LED Light Bar Red Led Strip w/Black Base customer photo 2](https://www.shortfilmcentral.com/wp-content/uploads/2026/10/B015SH93PM_customer_2.jpg)
What you get for the money
You get a sealed, DOT approved ID bar that turns an invisible fixture into a visible one, with a low profile that adds rear presence without adding trailer width. For a wide equipment trailer, this is a high-impact change for a small amount of wiring work.
It is also one of the few picks here that is a genuine incandescent-to-LED conversion you can do without touching the rest of the harness.
Where it falls short
No ground wire is included, and the grounding through painted stainless steel is unreliable, so plan to add your own ground. The included screws are wood screws rather than machine screws, which is not what you want in a vibration-prone frame mounting.
Installation also needs basic wiring knowledge, so this is not a first-ever wiring project.

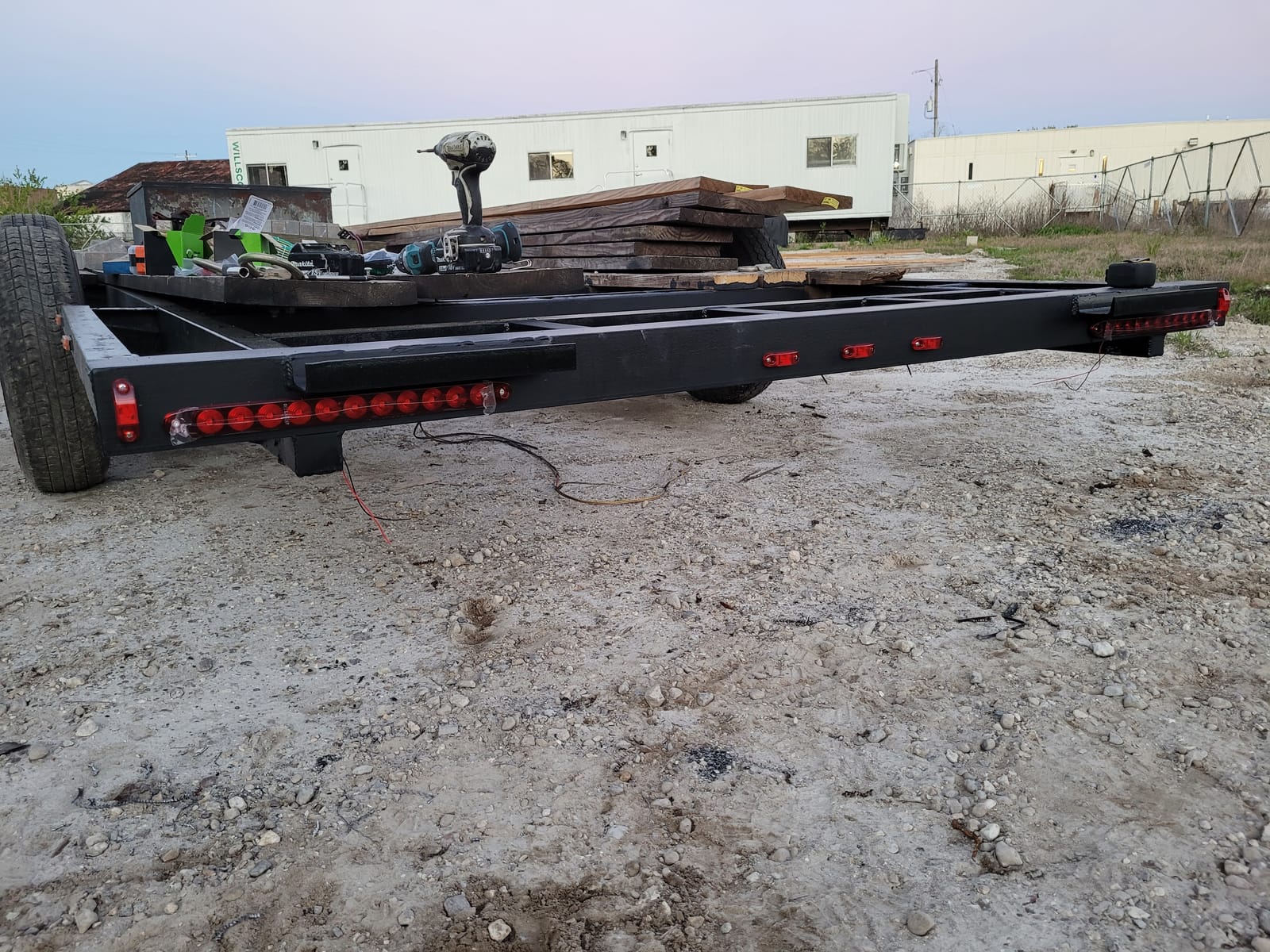

10. Nilight 16 Inch ID Bar 2 Pack – Maximum Rear Identification
Nilight 16″ LED Trailer ID Marker Light Bar, Red, 2-Pack
16 inch ID bar 2 pack
11 LEDs per bar
Dual brightness
IP65 to IP67 sealed lens
Pros
- Very bright so braking is visible from distance at night
- Simple three wire color-coded connection
- Rigid polycarbonate resists UV and weather
- Two pack covers both sides of a trailer
Cons
- Not truly flush without drilling for the rear wire
- No printed instructions included
- One package arrived short of mounting hardware
Two 16 inch bars, 11 LEDs each, dual brightness, a 2 year warranty and a 4.6 star average over 4,610 reviews. This is the most substantial identification lighting in the roundup, and the brightness is the point: owners report being able to see a brake application from a long way back at night, which is exactly the failure mode a utility trailer most needs to avoid.
The polycarbonate lens is sonically welded to the housing with a glue-sealed wire lead, and the wiring is simple: white for ground, black for the running light, red for stop and brake. That three-wire layout is one of the easier installs in this group, since it matches how most trailer harnesses are already organized.
It measures 16 inches long at 12 watts and 12 volts, and the same bar is used for hitch haulers, racks and under-tailgate mounting where rear visibility is the goal.
The sticking point is the mount. The wire exits from the rear of the bar, so flush mounting means drilling a center hole for the lead or building a spacer, and that is the step most reviews flag as unfriendly for a first-time installer.
What you get for the money
You get two bars, so both sides of a wide trailer are covered in one purchase, with dual brightness modes that let one bar serve as a running light and a stop lamp. The rigid polycarbonate construction is UV resistant, which matters for a bar mounted where sunlight hits it all day.
For night hauling and job-site work where visibility to following traffic is the priority, this is the strongest rear identification option here.
Where it falls short
No printed instructions are included, one package arrived short of mounting hardware, and the included screws are basic. Flush mounting without the drilling step takes a spacer or bracket.
The wire gauge is also light for heavy-duty use, so on a trailer that tows heavy and vibrates constantly, reinforce the connection rather than trusting the lead as supplied.
How to Choose Utility Trailer Lights in 2026
What lights are required on a utility trailer?
A utility trailer needs two red stop, turn and tail lamps at the rear, two red rear reflex reflectors or reflexor elements, amber side marker and clearance lights along each side if the trailer is 80 inches wide or wider or long enough to require them, a red identification light bar with three lamps if the trailer is over 80 inches wide, a white license plate light where a plate is mounted, and rear reflectors. Federal lighting standards under FMVSS 108 and the state codes that adopt them are the reference, and local inspection rules can add requirements of their own.
Two red stop, turn and tail lamps, rear center, roughly 60 percent red and 40 percent amber when a two-lamp assembly serves both stop and turn functions
Two red rear reflex reflectors or reflexor elements mounted low and at the outermost edges
Amber side marker lights along the front half of each side, clearance lights along the top edge for wide trailers
Three red identification lamps in a bar on trailers over 80 inches wide, mounted as high as practical
One white license plate lamp illuminating the plate from above or below
One forum correction worth repeating: only three red lights across the rear are actually required in most configurations, not six. Over-installation is common and it costs money without adding compliance.
Are clearance lights and marker lights the same thing?
No. They are different functions that often come in the same physical lamp, which is where the confusion starts. A side marker light shows a vehicle’s length and position from the side, while a clearance light shows a vehicle’s width from the front and shows where the widest point is, and a single combined lamp is commonly sold to do both jobs.
Side marker light: amber, marks the vehicle’s length along the side, required on wide vehicles and trailers
Clearance light: amber at the front, red or amber at the rear on some configurations, shows overall width, required on wide vehicles and trailers
Identification light: three red lamps in a bar, marks the vehicle as a wide load, required over 80 inches wide
This is exactly why pick 8 in our roundup is a 14-piece set with seven amber and seven red lamps: the color split is not decoration, it tells you where each lamp is supposed to go.
What color must marker lights be on a trailer?
Side marker lights must be amber. Clearance lights are amber at the front, and identification lights are red, always in groups of three. A red side marker where an amber one belongs is a common and easily spotted error, and it is the reason to buy the amber and red split together rather than one color at a time.
What is the 60/40 rule for trailers?
The 60/40 rule states that a stop and turn lamp must show 60 percent red and 40 percent amber when it is wired for the stop function. So a 4 inch round lamp needs roughly 2.4 inches of red and 1.6 inches of amber, and a 4 inch square lamp needs about 2.4 inches of red and 1.6 inches of amber in the lens. The rule exists so a following driver can tell a turn signal from a brake light at a glance, even before the color of the whole trailer is clear.
It also explains why an all-amber lens on a stop lamp is a defect rather than a style choice, and why amber-only bulbs in a red stop lamp housing are a code problem you can be cited for.
Are LED lights better on a trailer than incandescent?
Yes, for almost every use case. LEDs draw far less current, run cooler, survive vibration better because there is no filament, and last far longer in real service. Forum users who moved to sealed LED assemblies report service lives of 8 to 9 years, versus a season or two for cheap sealed LED units that leak. The lower draw also matters on older tow vehicles with marginal electrical systems, and a lower draw means a smaller conductor can carry the same circuit.
The one case for incandescent is serviceability in a sheltered environment. If a bulb burns, you unscrew the bezel and replace it in minutes, which is why pick 6 stays on this list. Everywhere else, LED wins on brightness, heat and lifespan.
Waterproof or submersible? The wording that trips people up
Waterproof means the housing resists water in normal use, typically rain, spray and a pressure wash. Submersible means the lamp is sealed well enough to be immersed, using a sonically welded or fully sealed housing with a sealed wire entry. Marketing language blurs these constantly, and the most negative reviews in this product category all describe the same disappointment: a light sold as waterproof that failed after a season because water found a seam.
Match the claim to the use. IP65 covers dust and low-pressure water, IP67 covers immersion in water up to a meter for a defined period, and IP68 is the deepest sealing in this roundup. If the trailer never touches water, IP65 is genuinely sufficient. If it launches a boat, buy only what is explicitly rated for submersion.
What are the DOT reflective tape requirements for utility trailers?
Trailers over 80 inches wide need conspicuity treatment along their full length and around their perimeter, and DOT-compliant reflective tape or sheeting is the standard way to satisfy it. The tape goes along both sides, across the rear, and around the full outline, in alternating red and white, with red and white arranged so they read correctly to traffic approaching from any direction.
Red and white two-color tape along the full length of both sides, repeated consistently
Full perimeter coverage on the rear and the front of the trailer body
Tape applied to a clean, flat surface, with the reflective elements facing outward
Commercially certified DOT or SAE reflective sheeting, not decorative chrome tape
Lights and reflective tape do different jobs. Lights show intention, tape shows the vehicle’s outline when lights are off, in fog, or when your lamps fail at the worst possible moment. If you are running a wide equipment trailer, a lighting upgrade without tape is an incomplete job.
Can you get pulled over for a marker light out?
Yes. A dark, broken, or missing required lamp on a trailer is one of the most common equipment citations, because it is objectively verifiable from the roadside with no equipment knowledge required. The citation usually targets the lamp, and in states that require it, an equipment violation can come with a court appearance and a fee on top of the correction.
Some states run annual or registration-time inspections on trailers, which is when a dead marker light turns into a failed inspection rather than a roadside citation. Either way, the fix is the same: replace it before you tow, not after.
Four wire or 7 pin: which connector do you need?
Match the connector to the tow vehicle, not to the trailer. A 4-way flat connector carries ground, tail, brake and turn, which is enough for a basic utility trailer with no brakes, no reverse lights and no running lamps. A 5-way adds reverse. A 7-pin adds electric brakes, reverse and running capability, and it is the one the forum consensus recommends if you are wiring anything new, because you can add brakes or reverse later without pulling new cable through the frame.
4-way flat: ground, tail, brake, turn. Basic utility trailers only.
5-way: adds reverse lights, usually for a boat or cargo trailer
7-pin: adds electric brake, reverse and running circuits, the future-proof choice
The most common ownership complaint is a cheap kit harness that will not mate with the connector already on the tow vehicle, so check the connector type before you buy the lights, not after.
How to diagnose a trailer light that will not work
Work in order, because the order is cheapest to most expensive and the lamp is almost never the first thing to blame. First, check the tow vehicle fuse for the trailer feed, because a blown fuse explains several dead lamps at once. Second, inspect the connector itself for green corrosion or a bent pin, since that is the single most common failure. Third, test the ground, which corrodes faster than anything else on the trailer. Fourth, and only then, suspect the lamp.
A flickering brake light that works when you wiggle the plug is a connector or ground problem, not a bulb. A light that works with the trailer unplugged and grounded directly to a battery is telling you exactly where the fault is.
Pre-trip light check and cold weather maintenance
Two minutes before every tow: plug in, confirm the running lights, test left turn, right turn, brake and hazards, and walk behind the trailer to confirm every lamp is lit rather than assuming the indicator proved it. On an annual or monthly basis, wash the lenses with soap and water, spray the connector with a corrosion inhibitor, and check that the ground strap is still bright metal rather than green.
After a season of road salt, rinse the lamp housings with fresh water. Salt works into seams and kills the sealing adhesive long before the plastic lens fails, and a rinse takes five minutes. See the same discipline we apply to key light selection: the gear that survives is the gear that gets maintained.
For night loading at a job site you are lighting the cargo area, not the road, and that is a separate purchase from anything on this list. Our guides to battery-powered COB lights and tube lights cover portable area lighting that runs off the same kind of power setup.
Frequently Asked Questions
What are some good quality trailer lights?
Good quality trailer lights are the ones with a stated sealing rating, a DOT or SAE compliance stamp, and hardware that includes heat-shrink or sealed connectors. In our testing the most reliable picks shared three traits: a sonically welded or fully sealed housing, copper rather than copper-clad wire, and a review history deep enough to reveal patterns. Sealed LED assemblies from named brands consistently outperformed generic submersible listings, and diode count was treated as a useful quality proxy by owners comparing options.
What is the 60/40 rule for trailers?
The 60/40 rule says a stop and turn lamp must show 60 percent red and 40 percent amber on the stop function. For a 4 inch lamp, that works out to about 2.4 inches of red and 1.6 inches of amber. The rule lets a driver behind you read your intentions instantly, and it is why an amber-only stop lamp or an amber bulb in a red housing is a defect rather than a preference.
Are there wireless trailer lights that don’t require a plug?
Yes, wireless and magnetic towing light kits exist and use a battery-powered transmitter and receiver instead of a wired connector. They are genuinely useful as emergency backup when a trailer’s plug or wiring has failed mid-trip, and they clamp or stick to the trailer in seconds. They are not a replacement for a proper wired system on a regular utility trailer, because they carry fewer circuits and depend on battery charge.
Can LED trailer lights be wired differently?
Most LED trailer lights wire the same way as incandescent units, with color-coded leads for ground, tail, turn and stop. The difference is that many LED assemblies have a separate or shared ground arrangement and a low current draw, so they can run on a smaller conductor. On a tow vehicle running LED tail lamps, an adapter or load resistor may be needed to stop hyper-blinking on the vehicle side.
Why are my trailer lights not working?
In order, check the tow vehicle trailer fuse, inspect the connector for corrosion or a bent pin, test the ground strap, and only then suspect the lamp. A flickering brake light that responds to wiggling the plug is a connector or ground problem. A trailer that is entirely dark usually means a blown fuse, a failed plug, or a bad ground, not ten failed bulbs.
Can I replace incandescent trailer lights with LEDs without running new wire?
Yes, in most cases. If your existing harness is sound and correctly gauged, LED assemblies with standard mounting holes and matching wire functions can go in without pulling new cable. Confirm the wire gauge is adequate for the new load and keep the ground clean and bright. Replacing the lamps is cheap; replacing a harness that has already been spliced twice is the expensive part of the job.
What color do marker lights have to be on a trailer?
Side marker lights must be amber. Clearance lights are amber at the front, and identification lights are three red lamps mounted in a bar, required on trailers over 80 inches wide. Buying amber and red markers together in a mixed set is usually easier than ordering colors separately, because it guarantees you have the right count for both side positions.
Which Utility Trailer Lights Should You Buy?
For most utility trailer owners in 2026, the MAXXHAUL 70205 is the pick: a complete all-LED kit with clearance lights, plate bracket and a 22 ft color-coded harness, rated 4.6 stars across more than 18,000 reviews. It removes the second shopping trip and the guesswork, which is where most lighting jobs go wrong.
If you only need lamps and your existing wire is sound, the Partsam square pair is the value pick, with the highest diode counts and IP68 sealing in the group. If your trailer touches water, the CZC AUTO submersible kit with sonic-welded housings and pure copper wire is built for it. Wide or long trailers need the 14-piece marker set and an identification bar on top of whatever rear lamps you choose.
Whichever set you land on, test every circuit before you button it up, seal every connection with heat-shrink rather than tape, and give the connector a corrosion spray before it fails you. That is the whole difference between the best trailer lights for utility trailers being a purchase you make once and a repair you make every season.
