Rear sag is the tell. You hook up a heavy trailer, load the tongue, and the back of the truck settles a couple of inches while the headlights point at the treetops. That is the moment most people start shopping for the best weight distribution hitches for heavy trailers, and it is usually the wrong reason.
A weight distribution hitch does not add capacity to your tow vehicle. What it does is move tongue weight off the rear axle and onto the front axle and the trailer’s own axles, so the rig tows level, steers predictably and stops shorter. Get that wrong and you are buying an expensive piece of hardware to solve a payload problem that no hitch can fix.
For this roundup I worked through ten weight distribution hitches rated from 10,000 lb to 20,000 lb gross trailer weight, pulled the rating, tongue weight, bar type, shank and weight figures straight from the manufacturer data, and cross-checked owner reports from iRV2, the Forest River Forums and r/GoRVing. Every pick below sits in the heavy-duty band that loaded trailers actually occupy. Nothing here is a light-duty 6,000 lb hitch with a heavy-duty badge.
Three things will save you money. Measure your real loaded tongue weight before buying. Check your receiver size, because the biggest hitches need a 2-1/2 inch receiver and most half-ton trucks do not have one. And read the tow vehicle payload and GCWR numbers on the door jamb, because those limits come first.
Most of what follows came out of the same three questions I kept being asked: how much tongue weight is too much, which bar type lasts, and whether a bigger hitch fixes an overloaded truck.
Table of Contents
- Top 3 Picks for Best Weight Distribution Hitches for Heavy Trailers in October
- Best Weight Distribution Hitches for Heavy Trailers in 2026
- 1. CURT 17063 Round Bar WDH with Sway Control – Best All-Rounder for Heavy Trailers
- 2. Husky Towing 30849 Weight Distribution Hitch – Highest Rated in the Group
- 3. Andersen Hitches 14K No-Sway Weight Distribution Hitch – Best Complete Heavy-Duty Package
- 4. Blue Ox BXW1500 SwayPro Weight Distributing Hitch – Best Noise-Free Sway Control
- 5. CURT 17422 Short Trunnion Bar Weight Distribution Hitch – Best Trunnion Build for 15,000 lb Trailers
- 6. Blue Ox BXW2000 SwayPro Weight Distributing Hitch – Best for 20,000 lb Trailers
- 7. CURT 17057 MV Round Bar Weight Distribution Hitch – Best Value Round Bar Setup
- 8. Equal-i-zer 4-Point Sway Control Hitch 12000 lb – Best 4-Point Sway Control
- 9. Fastway e2 2-Point Sway Control Trunnion Hitch – Best Lightest Built-In Sway System
- 10. Camco Eaz-Lift ReCurve R3 Weight Distribution Hitch Kit – Best for Quiet Towing
- Heavy-Trailer Capacity Tiers: Which One Fits Your Trailer
- How to Choose a Weight Distribution Hitch for Heavy Trailers
- Installing and Maintaining a Heavy-Trailer Weight Distribution Hitch
- Frequently Asked Questions
- Which brand of weight distribution hitch is best for heavy trailers?
- What is the best type of trailer hitch for heavy towing?
- Which weight distribution hitch is better, Curt or Equalizer?
- Which trailer hitch is the strongest?
- Do I need a Class IV receiver for a heavy trailer?
- How much tongue weight should a weight distribution hitch support?
- How do I set the chain links on a weight distribution hitch?
- Can a weight distribution hitch fix rear axle sag?
- Final Verdict: The Best Weight Distribution Hitches for Heavy Trailers
Top 3 Picks for Best Weight Distribution Hitches for Heavy Trailers in October
CURT 17063 Round Bar WDH
- 10000-14000 lb GTW
- 1000-1400 lb tongue weight
- Sway control kit included
- 100 lb
Andersen Hitches 14K
- 14000 lb GTWR
- 6 inch drop 2 inch shank
- Ball and brackets included
- Built in USA
The CURT 17063 takes the Editor’s Choice because it does the most complete job out of the box at the most common heavy-trailer weight class. The Husky 30849 carries the highest average rating in this group, and the Andersen 14K is the one to buy when the ball and brackets being included matters more than the price tag.
Best Weight Distribution Hitches for Heavy Trailers in 2026
| Product | Specs | Action |
|---|---|---|
| CURT 17063 Round Bar WDH with Sway Control |
|
Check Latest Price |
| Husky Towing 30849 Weight Distribution Hitch |
|
Check Latest Price |
| Andersen Hitches 14K No-Sway Weight Distribution Hitch |
|
Check Latest Price |
 Blue Ox BXW1500 SwayPro Weight Distributing Hitch |
|
Check Latest Price |
 CURT 17422 Short Trunnion Bar Weight Distribution Hitch |
|
Check Latest Price |
| Blue Ox BXW2000 SwayPro Weight Distributing Hitch |
|
Check Latest Price |
 CURT 17057 MV Round Bar Weight Distribution Hitch |
|
Check Latest Price |
 Equal-i-zer 4-Point Sway Control Hitch 12000 lb |
|
Check Latest Price |
 Fastway e2 2-Point Sway Control Trunnion Hitch |
|
Check Latest Price |
 Camco Eaz-Lift ReCurve R3 Weight Distribution Hitch Kit |
|
Check Latest Price |
1. CURT 17063 Round Bar WDH with Sway Control – Best All-Rounder for Heavy Trailers
CURT 17063 Round Bar Weight Distribution Hitch with Sway Control, 14,000 lb
Carbon steel
Powder coated
100 lb
10,000-14,000 lb GTW
1,000-1,400 lb TW
Sway kit 17200
Pros
- Widest review base in the group at 1257 ratings
- Forged steel round spring bars
- Grease zerk fittings at the bar mounts
- Flippable 2 inch shank for drop or rise
- Pre-torqued 2-5/16 inch ball and sway kit included
Cons
- Round bars need a lubrication step
- 100 lb is a two-person install
- Limited lifetime warranty excludes the finish after one year

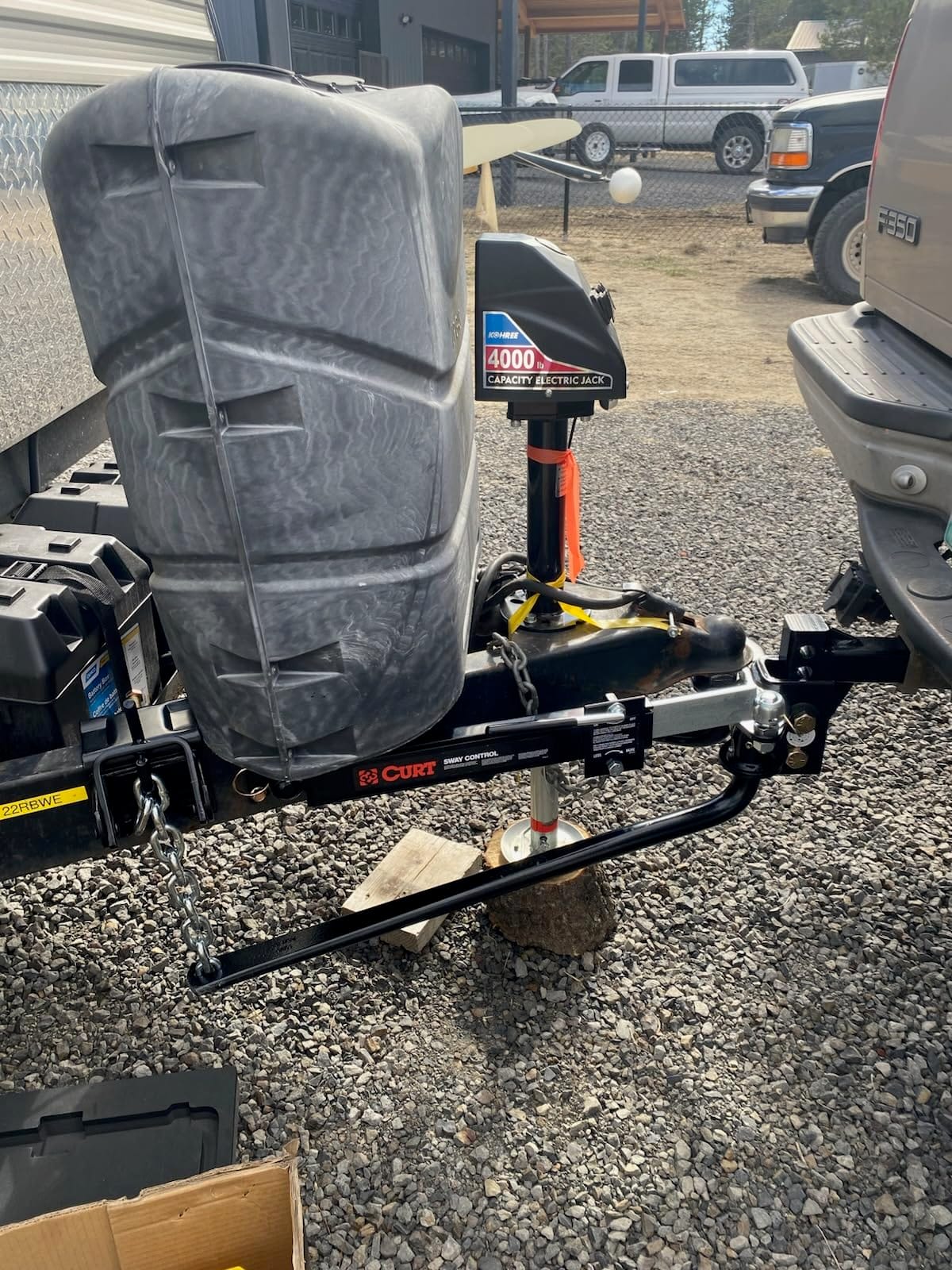

The CURT 17063 is the one I keep coming back to for mid-weight heavy trailers, and the reason is boring in the best way. It is rated for 10,000 to 14,000 lb of gross trailer weight and 1,000 to 1,400 lb of tongue weight, which covers the majority of triple-axle travel trailers and most enclosed cargo haulers. The head and spring bars are carbon steel with a powder coat finish, and the whole unit weighs 100 lb.
Everything needed to hook up arrives in the box. You get a pre-torqued 2-5/16 inch ball, sway control kit #17200, hookup brackets, a lift handle and a flippable 2 inch shank that gives you drop or rise depending on how you turn it. With 1257 ratings averaging 4.5 stars and a 79 percent five-star share, it is also the most thoroughly owner-tested hitch in this group by a wide margin.
Owners talk about the ride more than the paperwork, and the pattern is consistent. Reviewers describe a smoother, more level tow, a truck that stops squatting in the driveway, and a sway control that does its job without being adjusted constantly. The integrated grease zerks at the spring bar mounts get called out as the detail that keeps the round bar system honest over time.
The one thing everyone notes is weight. At 100 lb this is not a solo hitter, and the lift handle exists for a reason. The finish also carries a one-year warranty even though the hitch itself is limited lifetime, which is a fair distinction to keep in mind if you tow in salt or on gravel roads.
How it performs with a loaded tongue
The 17063 does its work through bar tension rather than friction pads, so the level ride depends on setting the chains right. Hook up, add chain links until the truck sits level or slightly nose-down, then drive a short loop and re-check. Owners who skip that second pass are the ones who end up unhappy with ride height.
Because the shank flips, the same hitch covers a lifted truck with a high coupler and a factory-height truck with a low one. That flexibility, plus a ball that arrives pre-torqued, is the reason it works as a first heavy-trailer hitch as well as a replacement.
Who should skip it
Skip it if your trailer is genuinely above 14,000 lb loaded, because at that point you want the 15,000 and 20,000 lb units further down this list. Skip it if you tow solo and cannot get a second pair of hands to lift 100 lb into a receiver. And skip it if your trailer’s coupler is mounted low or your ball mount is unusual, because a ball mount upgrade changes the required drop.

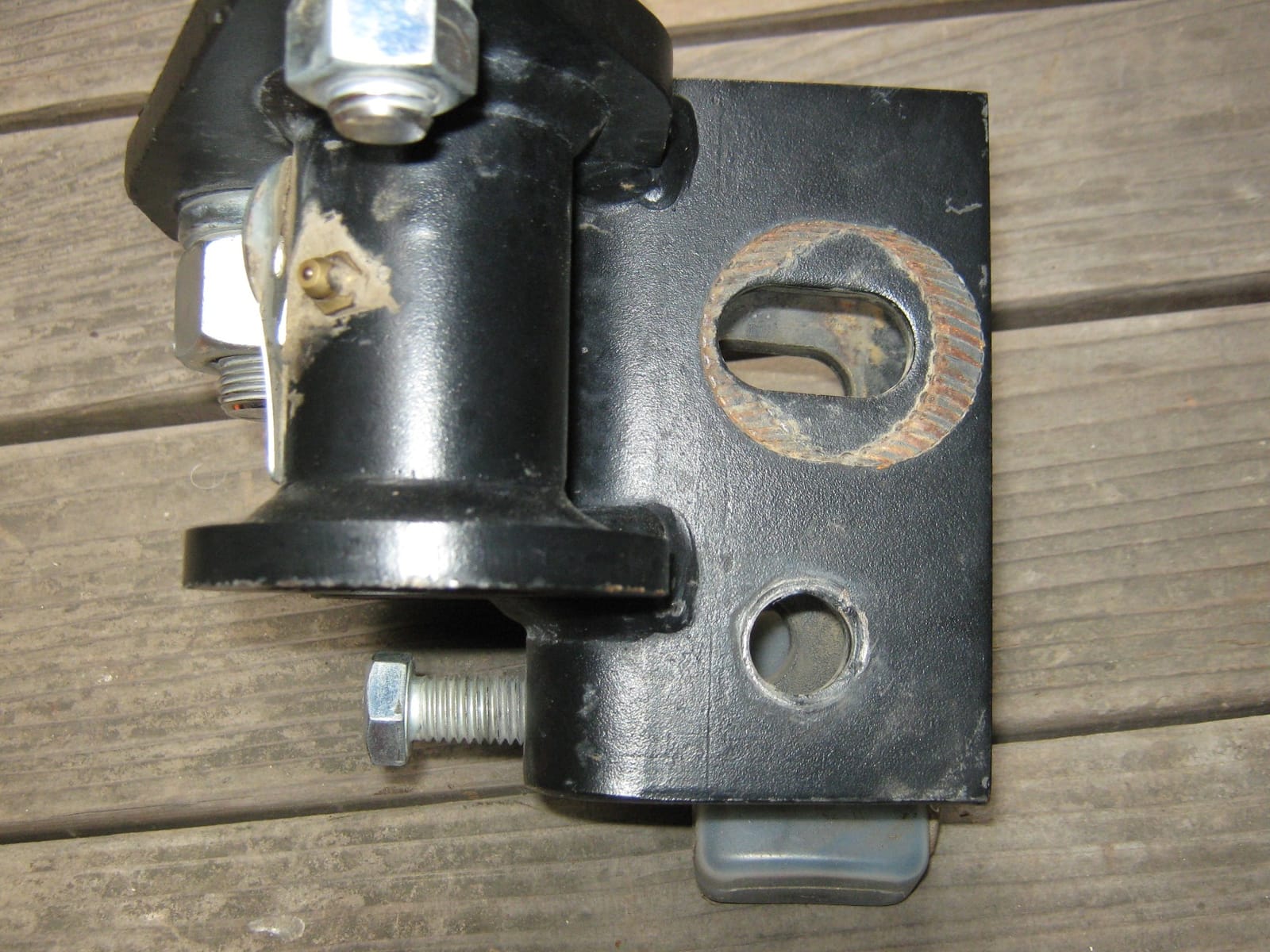

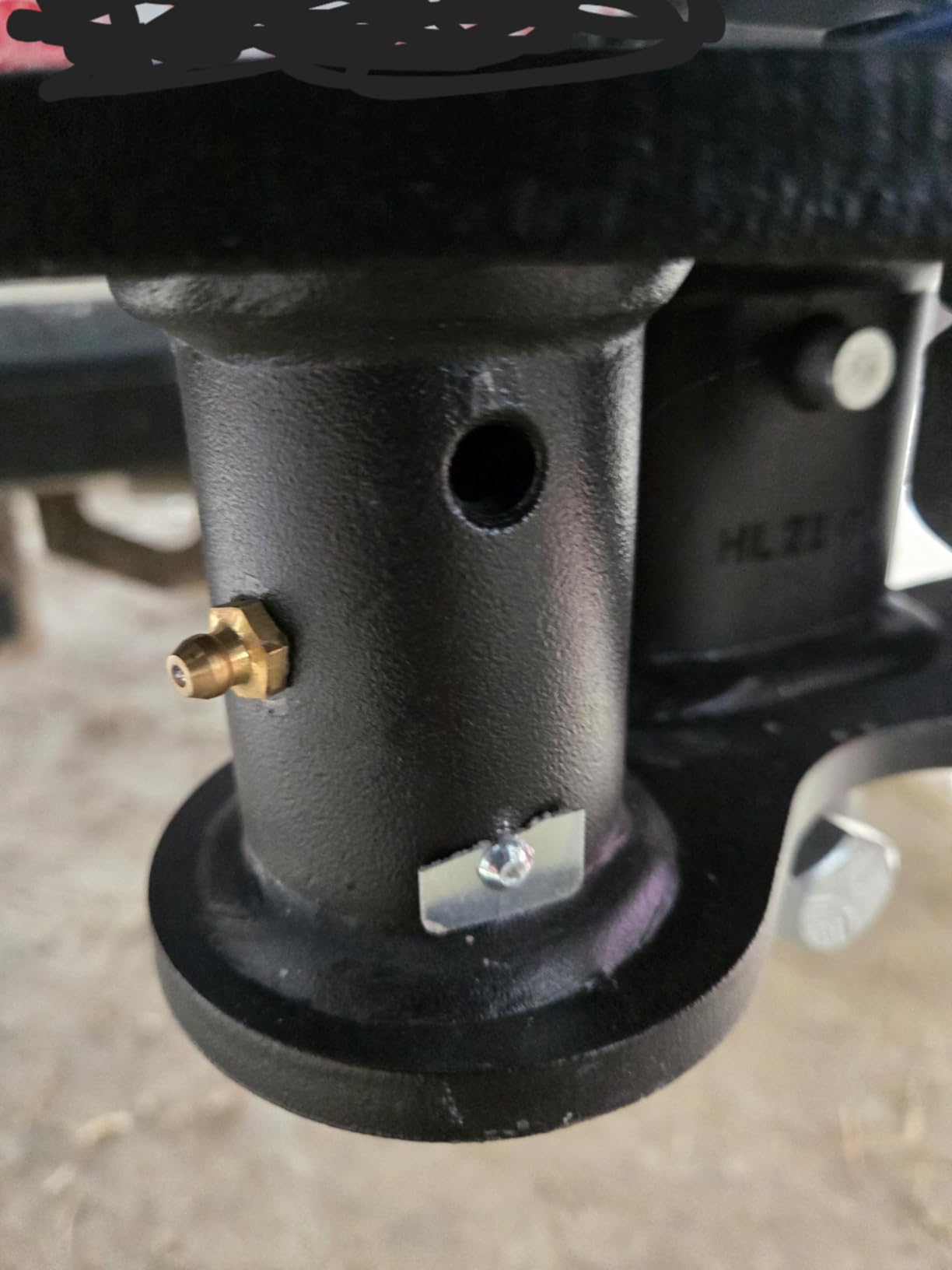

2. Husky Towing 30849 Weight Distribution Hitch – Highest Rated in the Group
Husky Towing 30849 Weight Distribution Hitch
Polyester finish
104 lb
12,000 lb GTW
1,200 lb tongue weight
8 inch height adjustment
Pros
- Highest average rating here at 4.6 stars
- Bolt-together ball mount and shank
- 8 inch total height adjustment
- Interchangeable spring bars fit either side of the head
- Lifetime warranty for residential towing
Cons
- Sway control platform balls are not included
- Head needs a 1-1/4 inch shank on the trailer ball
- 104 lb makes it a two-person job
The Husky 30849 rates 4.6 stars across 593 ratings, the highest average in this roundup, and the design choices behind that number are practical rather than flashy. It is rated to 1,200 lb of tongue weight and 12,000 lb of gross trailer weight, with a listed pull force of 12,000 lb, and it weighs 104 lb.
Height adjustment is where it separates itself. You get 8 inches of total movement, split between a 5-5/8 inch rise and a 2-3/8 inch drop, on a 10 inch shank, with a 12-3/4 inch ball-to-pin-hole distance. The ball mount and shank bolt together rather than welding, and the spring bars are interchangeable so they fit on either side of the head. A 2-5/16 inch ball, sway control, hardware and chains are all included.
Reviewers consistently point to the bolt-together assembly as the reason installation is straightforward, and to the polyester finish for holding up against rust and corrosion. Lift brackets make the hookup safer than levering 104 lb of steel into a receiver by hand. A 78 percent five-star share puts it comfortably among the best-reviewed hitches in the category.
Two omissions are worth planning around. The sway control platform balls are not included and have to be sourced separately, and the head assembly has a 1-1/4 inch hole, which means the trailer ball needs a matching 1-1/4 inch shank rather than the more common 1-1/8 or 1 inch. Some owners have also reported missing components on arrival, so count the kit against the parts list before you start.
Where the 8 inches of adjustment pays off
That height range is the reason to buy this one over a fixed-drop hitch. It covers truck bed heights from a half-ton with a factory hitch all the way up to a lifted three-quarter-ton, and it lets you correct for a coupler mounted higher or lower than standard. For people who change tow vehicles, it is one hitch that stays in the box.
Interchangeable spring bars on either side of the head are a small detail that saves a headache when the trailer frame and the truck are not perfectly centered, or when the bar ends need to point down instead of up to clear the hitch.
Who should skip it
Skip it if your trailer is over 12,000 lb loaded, since the rating stops there. Skip it if you do not want to track down the two sway control platform balls and confirm the ball shank diameter before you start. And skip it if the 1,200 lb tongue weight rating is under what your rig actually puts on the ball when loaded, which is a common problem with ball-mounted campers carrying gear in the nose.
3. Andersen Hitches 14K No-Sway Weight Distribution Hitch – Best Complete Heavy-Duty Package
Andersen Hitches Weight Distribution Hitch 2 Inch Shank 6 Inch Drop 2-5/16 Inch Ball 14K GTWR 3 4 5 6 Inch Brackets Anti-Sway
Alloy steel
Powder coated
14,000 lb GTWR
3500 lb pull force
2 inch shank, 6 inch drop
Built in USA
Pros
- Ball and all mounting hardware included
- Adjustable 3
- 4
- 5 and 6 inch frame brackets
- Multiple drop options including 4 and 8 inch
- Lifetime manufacturer warranty
- Built in the USA
Cons
- Shank drop must be measured correctly to clear the vehicle
- Frame brackets must match trailer frame height
- Weight not published by the manufacturer

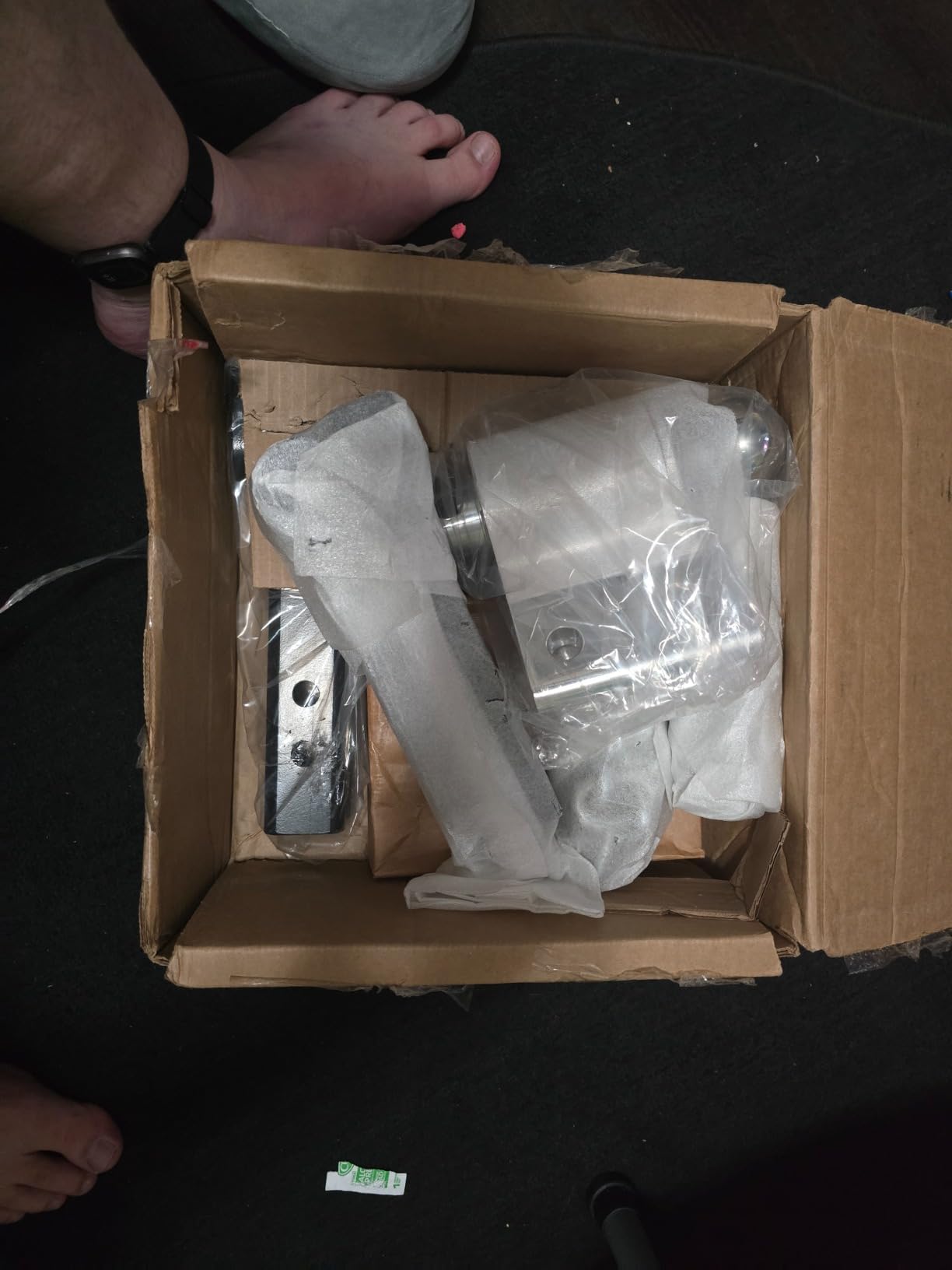

The Andersen 14K is the most complete package in this roundup. You get the hitch, the 2-5/16 inch ball, mounting plates, bolts, chains and adjustable frame brackets in 3, 4, 5 and 6 inch widths, all in one 14,000 lb GTWR package built in the USA from alloy steel. Rated pull force is listed at 3,500 lb and it carries a lifetime manufacturer warranty.
The integrated sway control bar is built around no-sway geometry rather than a friction pad, which means nothing is rubbing against the tongue and the system keeps working in rain or snow. The 2 inch shank comes with a 6 inch drop as standard, and 4 inch and 8 inch versions exist for other vehicle and trailer combinations, so matching a lifted truck or a low coupler is straightforward.

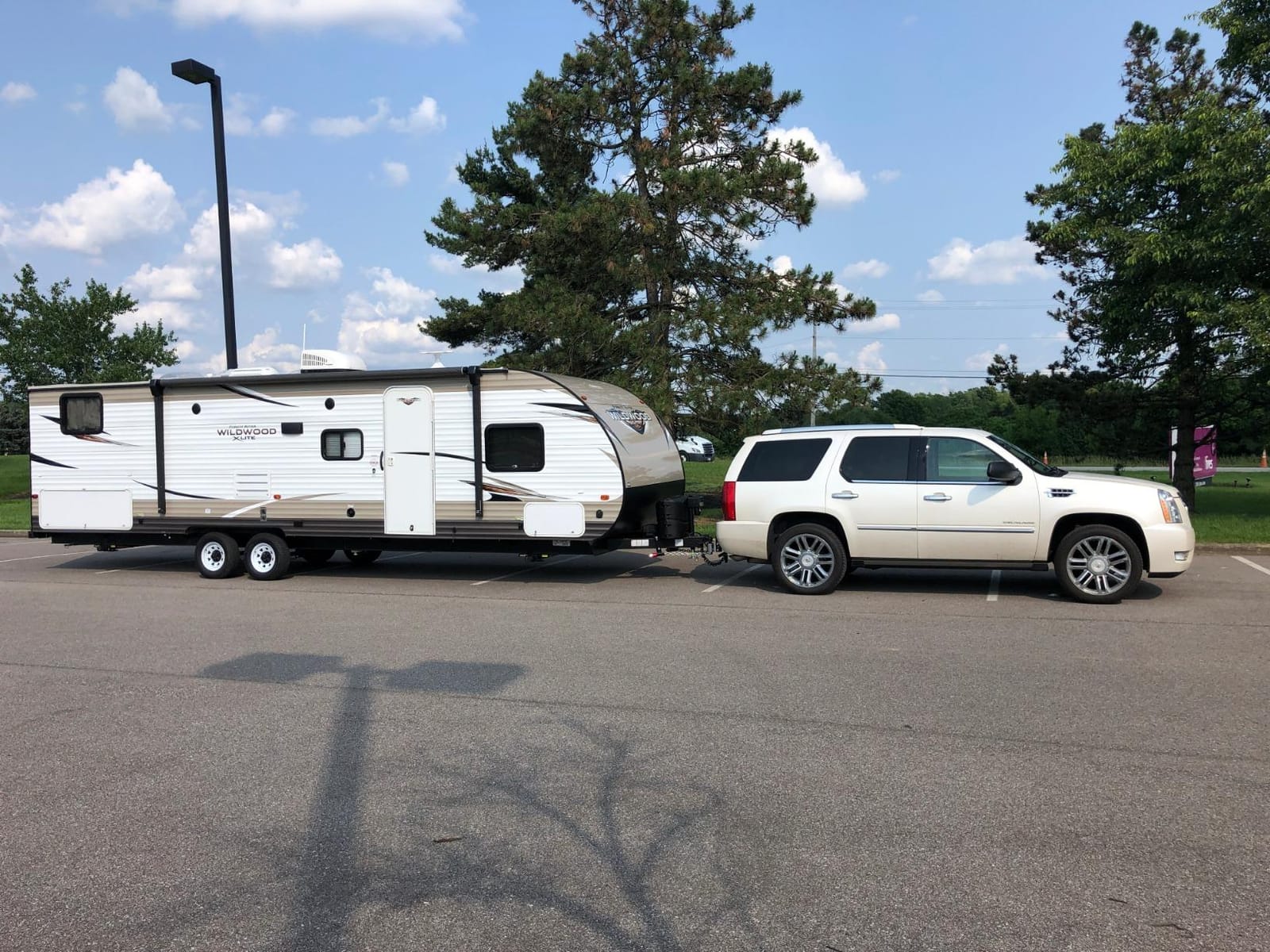

Owners report a noticeably smoother, more controlled ride after installation, with an 80 percent five-star share across 788 ratings. On iRV2, an owner put it plainly: we use the Andersen WDH and like it, works great. The recurring theme in the reviews is that the adjustment range is what makes it fit, because the brackets and drop can be matched to the actual trailer rather than assumed.
One gap in the published data: the manufacturer does not list a unit weight for this hitch, so you should plan the lift with a helper. That matters more than usual here, because the included ball and hardware mean the box is the entire system and there is nothing to leave behind in the truck bed.
Why the included brackets matter on a heavy frame
On a triple-axle or a gooseneck frame, bracket width is not a preference. A frame bracket that is too narrow concentrates the load across a smaller section of the A-frame, and the four included widths mean you can match the bracket span to the frame rather than making do with what shipped. That is a real advantage over kits that ship a single fixed bracket.
The no-sway design also removes the part of the system owners complain about most. With no friction pad scrubbing on the tongue, there is no squeak on turns and no pad to replace, and the sway performance does not change when the trailer gets wet.
Who should skip it
Skip it if you are below 10,000 lb, because you would be paying for capacity you will not use and carrying more steel than the trailer needs. Skip it if you cannot measure your coupler height and frame width before ordering, since both the drop and the bracket have to be right on the first attempt. And skip it if you want the lowest possible hitch weight for solo hookups.
4. Blue Ox BXW1500 SwayPro Weight Distributing Hitch – Best Noise-Free Sway Control
Blue Ox BXW1500 SwayPro Weight Distributing Hitch 2″ Receiver for Trailer | 7-Hole Shank | 15,000 lb Maximum Towing | Quick & Easy Setup | Noise-Free Sway Prevention
Alloy steel
95 lb
15,000 lb GTW
1,500 lb tongue weight
7-hole 9 inch stinger
Pros
- Rotating latches let you back up without disconnecting sway control
- Silent operation that keeps working in rain or snow
- Clamp-on brackets mean no drilling the trailer frame
- Complete kit with head shank brackets bars and hardware
Cons
- Requires a coupler welded to the top of the frame
- 95 lb is heavy to lift
- 7-hole shank gives less adjustment than a 9-hole
The Blue Ox BXW1500 SwayPro is rated for 1,500 lb of tongue weight and 15,000 lb of maximum gross towing weight, and it weighs 95 lb in alloy steel. That places it at the top of the mid-weight class, right where a lot of loaded triple-axle travel trailers actually sit. The shank is a standard 7-hole, 9 inch receiver stinger for 2 inch receivers.
What sets it apart is the rotating latch design. The clamps engage the A-frame and the spring bars load against them, but you can rotate the brackets to release without snapping tensioned bars apart or disconnecting the sway control. Reviewers consistently treat that as the feature that changes day-to-day usability, because backing into a campsite or a tight driveway no longer requires unhooking anything. iRV2 owners put it as one of the strongest options for the money.
It is also genuinely quiet. The no-sway design uses no friction pad rubbing on the tongue, and Blue Ox specifies that the sway prevention keeps working in rain or snow, which is the condition where friction systems are weakest and noisiest. Owners report reduced rear-end sag in the tow vehicle and a better-balanced ride, with a 76 percent five-star share.
The catch is a frame-style requirement, and it is not negotiable. The coupler must be welded to the top of the trailer frame with no tongue cross-members and no blocking equipment in the way. Check your trailer’s A-frame before you order, not after. The 7-hole shank also offers less vertical fine-tuning than a 9-hole stinger.

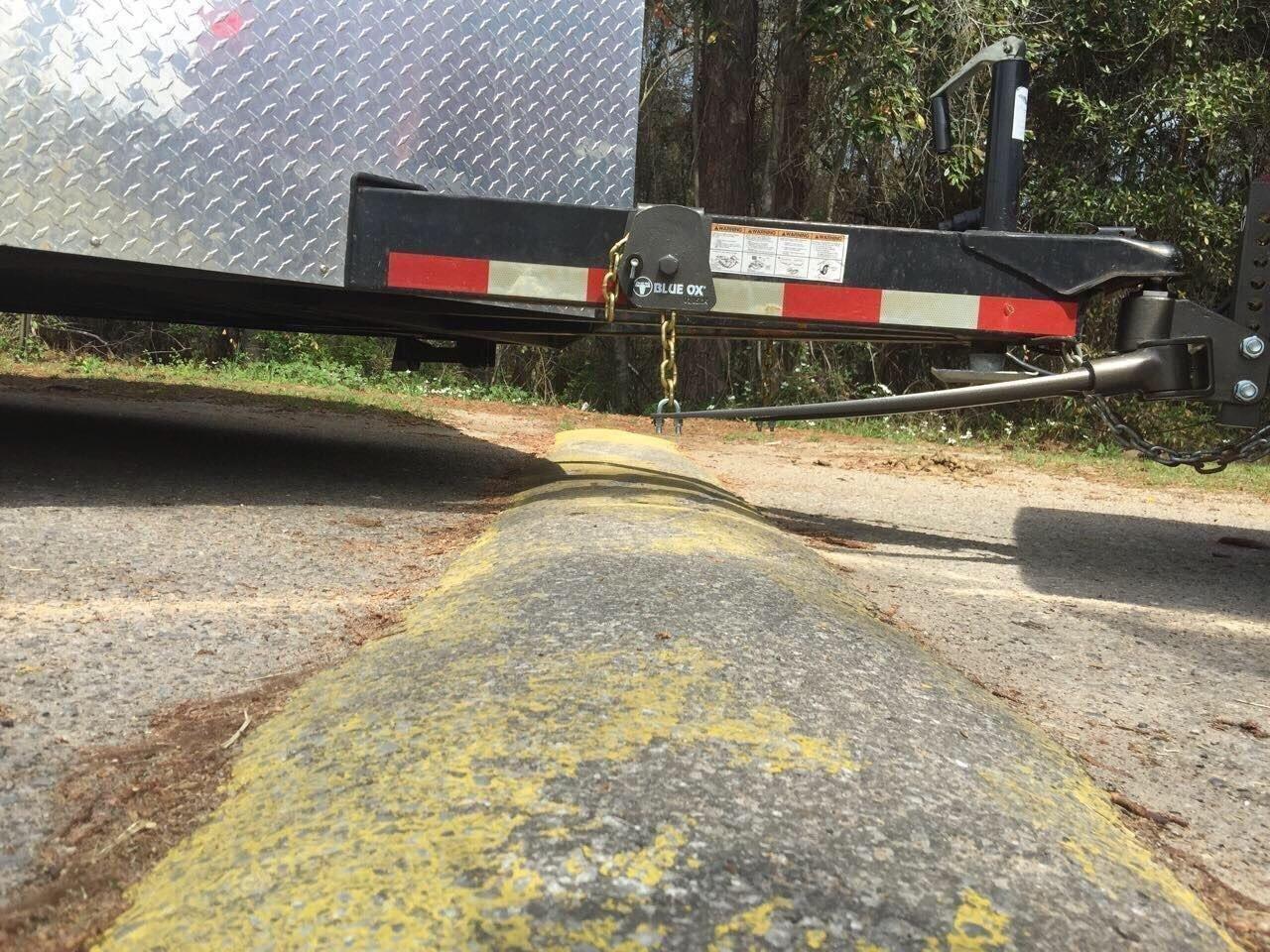

How the clamp-on brackets save the frame

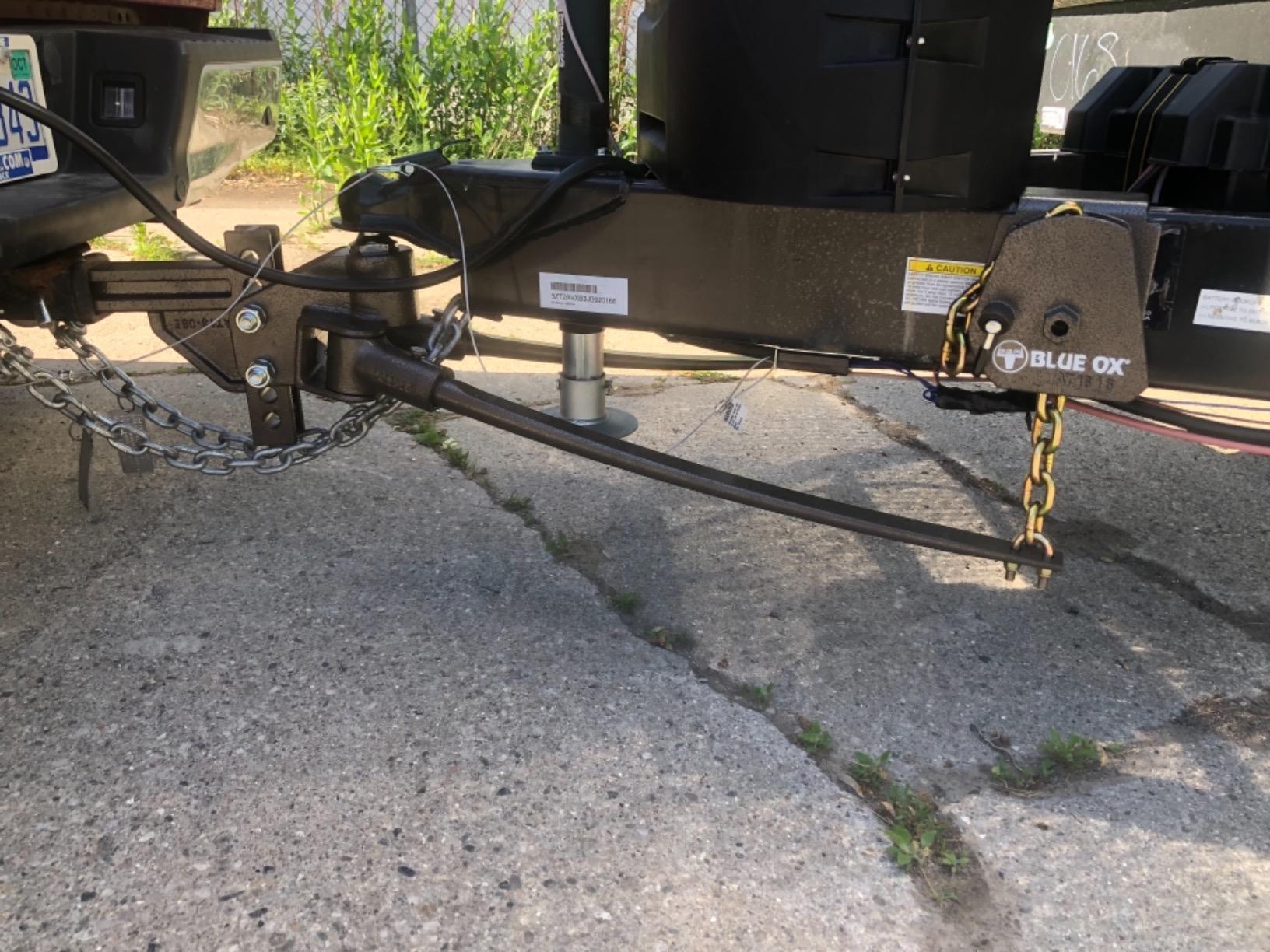

Clamp-on brackets bolt to the outside of the A-frame members rather than drilling into them. On a heavy trailer, that is not a convenience, because drilling into a main A-frame rail introduces a stress concentration in exactly the member carrying the highest bending load. Owners who have drilled and clamped have usually regretted it on resale.
Because the whole system stays attached, the same hitch works for a trailer stored behind a house. You connect once, tighten the clamp bolts with the included wrench, and the spring bars and sway control remain live the entire time you are hooked up.
Who should skip it
Skip it if your trailer has a coupler welded to the underside of the frame, a gooseneck, or tongue cross-members and slide-out storage in the frame rails. Skip it if you need very fine ride-height adjustment, since 7 holes is the whole menu. And skip it if your trailer is above 15,000 lb loaded, which puts it out of range entirely.
5. CURT 17422 Short Trunnion Bar Weight Distribution Hitch – Best Trunnion Build for 15,000 lb Trailers
CURT 17422 Short Trunnion Bar Weight Distribution Hitch with Sway Control, Up to 15,000 lbs., 2-Inch Shank, 2-5/16-Inch Ball
Carbon steel
Powder coated
105 lb
15,000 lb GTW
28-3/8 inch trunnion bars
Pros
- Trunnion-style forged steel bars need no grease channel
- 15000 lb capacity covers heavy triple-axle trailers
- Formed head adjusts for precise leveling
- Sway control mounts on built-in attachment tabs
Cons
- 105 lb is the heaviest unit here
- Bar length is short and limits clearance options
- Included self-drilling screws are weak and can snap
The CURT 17422 is the trunnion-bar option for people whose trailers outgrow the 12,000 lb class. It is rated to 15,000 lb of gross trailer weight with a 15,000 lb pull force rating, and it uses 28-3/8 inch trunnion-style forged steel bars in a carbon steel, powder-coated package weighing 105 lb. The head is a heavy formed unit that adjusts for precise leveling, and the 2 inch shank comes with a pre-torqued 2-5/16 inch ball.
Structurally, trunnion bars are the heavier-duty choice. The flattened section is captured by the head rather than resting in a lubricated cup, so there is no grease to dry out in storage and no cup to corrode. Owners who tow loaded equipment or camper rigs report strong anti-sway performance when passing semis and in crosswind, and 79 percent rate it five stars.
The recurring complaints are packaging and hardware rather than performance. The self-drilling screws supplied for the sway control ball bracket are widely reported as weak and prone to snapping, so replace them with proper grade 8 fasteners before you rely on them. Instructions are also thin, and a few owners reported damaged or incomplete paperwork on arrival, which is worth checking the moment the box opens.
There is a real clearance tradeoff. The 28-3/8 inch bar is shorter than some competing trunnion hitches, and that length is what determines how much drop you have available for a tall truck. Measure your coupler height and the top of your receiver before you commit, especially on a lifted vehicle.
When a trunnion bar is the right call
Trunnion bars make the most sense for a trailer that is heavy, loaded near its limit, and stored between trips. With no grease channel, there is nothing to service after six months in a barn and nothing to seize when you pull it back out in spring. That is the opposite of the round bar situation, where the zerks must be pumped every time the trailer is used.
The other reason to pick this one is the built-in sway control tabs on the head. Sway control kit #17200 mounts directly to those tabs, which makes the geometry more predictable than clamping a bar to a flat plate and hoping it lines up.
Who should skip it
Skip it at 105 lb if you tow solo. Skip it if you need a lot of drop on a heavily lifted truck, because the short bars are the reason. And skip it if you are fussy about hardware quality, since the included screws are a known weak point and you will likely be replacing them anyway.
6. Blue Ox BXW2000 SwayPro Weight Distributing Hitch – Best for 20,000 lb Trailers
Blue Ox BXW2000 SwayPro Weight Distributing Hitch | 9 Hole Shank, 2000lbs Tongue, 20000lbs Towing, 2-1/2″ Receiver | Quick & Simple to Use
90 lb
20,000 lb GTW
2000 lb tongue weight
2-1/2 inch receiver
9-hole 9 inch stinger
Pros
- Highest ratings in the roundup at 20000 lb GTW and 2000 lb tongue weight
- Rotating brackets remove the need to snap up tensioned spring bars
- 9-hole shank gives more height options than short-stinger models
- Spreads tongue weight across all axles for a level ride
Cons
- Requires a 2-1/2 inch Class IV receiver
- Same SwayPro frame-style requirement as the 1500 model
- 90 lb is heavy to lift into a large receiver

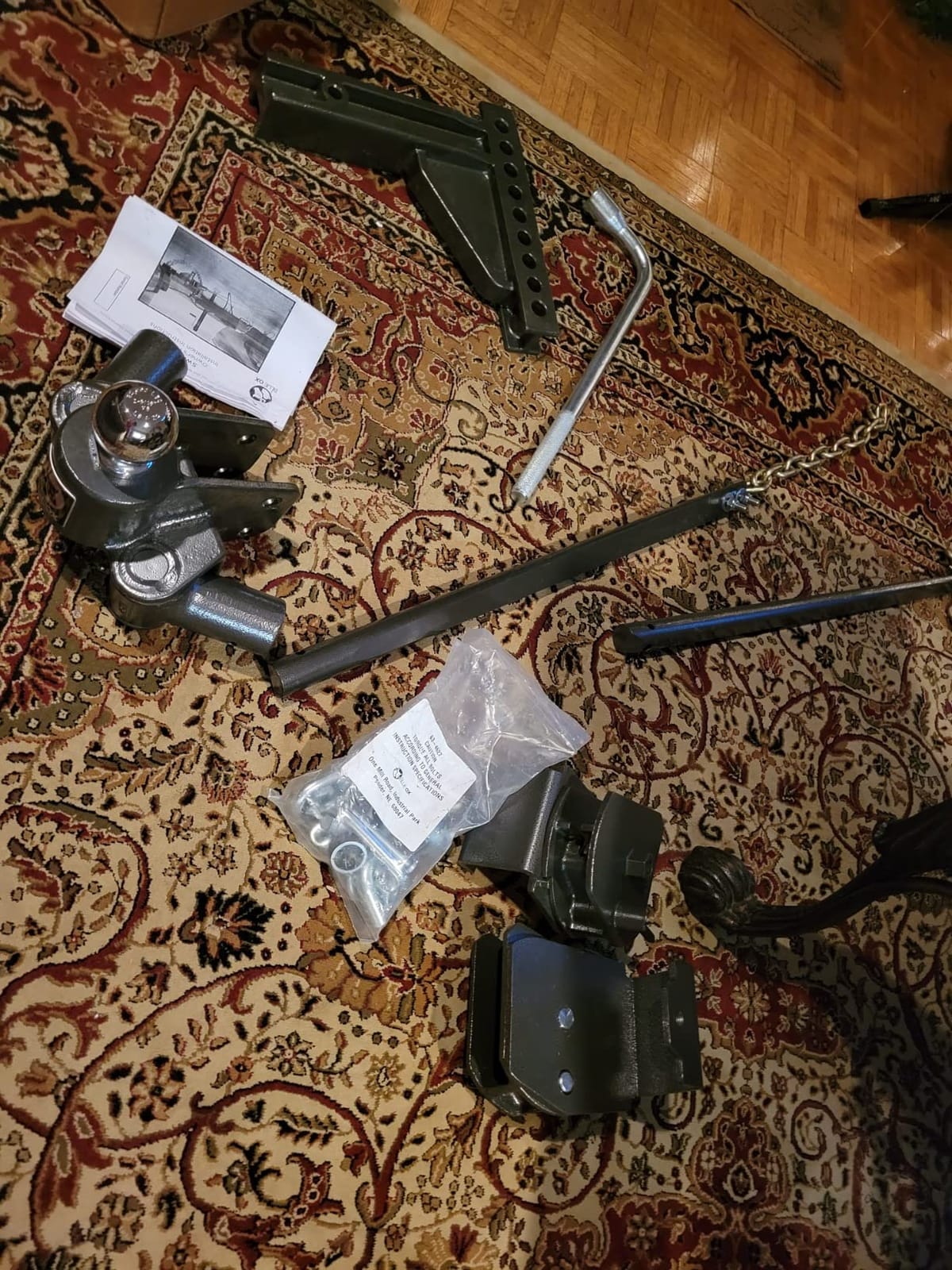

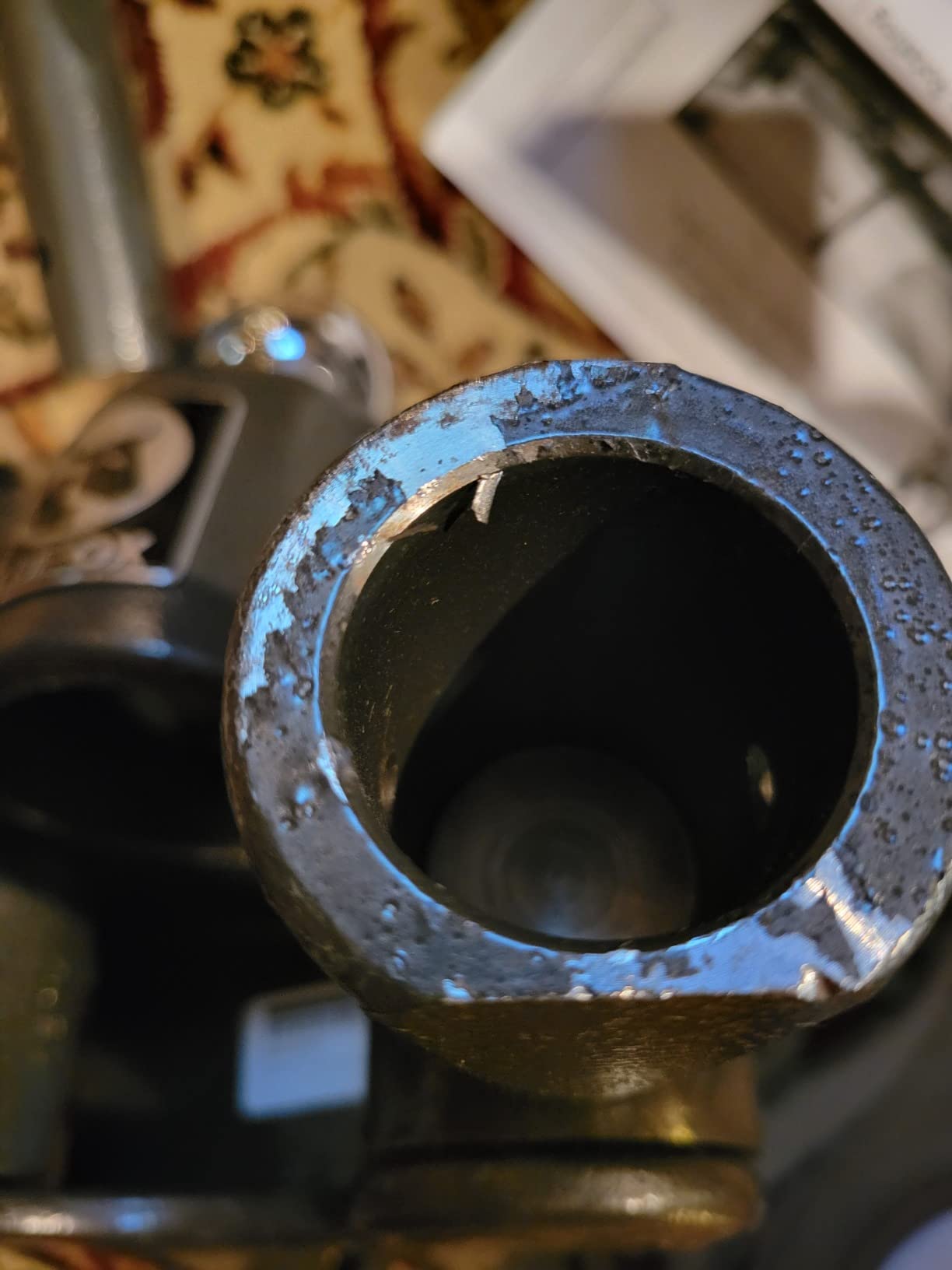

The BXW2000 is the capacity ceiling of this roundup: 2,000 lb of tongue weight and 20,000 lb of maximum gross towing weight. It is also the only hitch here that requires a 2-1/2 inch receiver, which means it belongs on a three-quarter-ton or one-ton truck with a Class IV hitch, not on a half-ton. The unit weighs 90 lb and measures 5.25 by 12 by 15.5 inches.
The shank is a standard 9-hole, 9 inch receiver stinger with a standard coupler hitch head, and that 9-hole pattern gives noticeably more height adjustment than the 7-hole version on the 1500 model. Hookup uses the same rotating bracket system: insert the lift chain into the slot, rotate the lift bracket with the included wrench, and the spring bars load without being levered into place by hand.
With 99 ratings averaging 4.4 stars and an 80 percent five-star share, owners emphasize two things: the ease of the rotating-bracket hookup and how stable the ride stays at the top of the capacity class. The engineering goal is straightforward, spreading tongue weight evenly across all axles of both the tow vehicle and the trailer so the rig rides level at the hitch’s full rating.
The same SwayPro frame requirement applies, and it is the reason some buyers end up returning this. The coupler has to be welded to the top of the trailer frame with no cross-members or blocking equipment in the way. Verify your A-frame layout first. Note also that the review count here is the lowest of any top-five pick, so treat the model as well-engineered but less owner-tested than the leaders.
Whether your truck can actually take it
Before anything else, confirm the receiver opening. A 2-1/2 inch receiver is a Class IV part, standard on three-quarter-ton and one-ton trucks and effectively absent from half-tons. If your truck does not already have it, the receiver itself becomes the first purchase, and its own rating has to exceed 20,000 lb with margin.
Then run the door jamb numbers. A 20,000 lb trailer typically lands between 1,800 and 2,000 lb of tongue weight, and that weight has to fit inside your truck’s payload after passengers, hitch and cargo. GCWR has to cover the loaded trailer plus the loaded truck. The hitch rating is the last link in that chain, not the first.
Who should skip it
Skip it if your trailer is under 15,000 lb, because a mid-weight hitch will serve you with less steel and far more shank adjustment. Skip it if your tow vehicle has a 2 inch receiver, full stop. And skip it if your trailer frame has cross-members or a bottom-mounted coupler, since the SwayPro design will not fit it.
7. CURT 17057 MV Round Bar Weight Distribution Hitch – Best Value Round Bar Setup
CURT 17057 MV Round Bar Weight Distribution Hitch, Up to 14,000 lbs., 2-Inch Shank
Carbon steel
Powder coated
84 lb
14,000 lb GTW
Round forged steel bars
Pros
- Heaviest class build at the lightest weight in the roundup
- Restores rear ride height on a half-ton at max tow capacity
- Grease zerk fitting for continuous lubrication
- Reducer sleeve option for receiver fit
Cons
- Sway control bar must be bought separately
- 84 lb still needs a helper or a reducer sleeve
- Handle has no rubber grip and the bare steel edge is sharp
The CURT 17057 MV is the round bar answer for people who want the 14,000 lb rating without the 100 lb unit. At 84 lb it is the lightest heavy-class hitch here, it is rated to 14,000 lb of gross trailer weight, and it uses the same round forged steel spring bars and fabricated adjustable head as the rest of the CURT range, with a grease zerk fitting for continuous lubrication.
The adjustable 2 inch shank includes a reducer sleeve option, which is a real convenience on a half-ton with a factory bumper receiver. The model also comes in 6k, 8k, 10k and 14k capacities, so if you are not sure your trailer will stay heavy, this is a range that grows with you.
Owners call out one use case more than any other: restoring rear ride height on a half-ton truck at its maximum tow rating. Reviewers describe easy setup when following the instructions, a heavy steel build that holds up under real trailer loads, and a grease zerk that simplifies the maintenance side. Seventy-six percent rate it five stars across 127 ratings.
Plan for the sway bar as a separate purchase, since it is not included here. Two smaller complaints come up repeatedly: the handle has no rubber grip and the bare steel edge is uncomfortable on bare hands, and a minority of shipments arrive with missing or unrelated parts, so verify the box against the parts list before you begin.
When a 14,000 lb rating is the right ceiling
Most loaded triple-axle travel trailers fall well inside 14,000 lb even when fully packed, which makes this the sensible capacity match for a lot of heavy trailers. The tradeoff with the 17063 is simply that you choose this one for the lower carry weight and buy your sway control separately, and you pay for that in assembly steps rather than in dollars.
For someone switching tow vehicles between a half-ton and a three-quarter-ton, the reducer sleeve and adjustable shank make the same hitch usable on both, provided the ball mount and coupler heights line up.
Who should skip it
Skip it if you want sway control included, since you will be sourcing and mounting that yourself. Skip it if you are sensitive to bare steel edges on the carry handle. And skip it if your trailer is above 14,000 lb, or if you plan to add a fifth-wheel or gooseneck ball in the same receiver.
8. Equal-i-zer 4-Point Sway Control Hitch 12000 lb – Best 4-Point Sway Control
Equal-i-zer 4-point Sway Control Hitch, 90-00-1201, 12,000 Lbs Trailer Weight Rating, 1,200 Lbs Tongue Weight Rating, Weight Distribution Kit DOES NOT Include Hitch Shank, Ball NOT Included
Alloy steel
Painted
12000 lb trailer rating
1200 lb tongue weight
Shank and ball not included
Pros
- 4-point system produces a markedly calmer tow than 2-point designs
- Users report it largely eliminated sway on a short-wheelbase tow vehicle
- No need to disconnect sway control when backing into a campsite
- Heavy US-made construction built to outlast lighter setups
Cons
- Shank and hitch ball are not included
- Most off-the-shelf balls have too long a stud and can damage the trunnions
- Requires the brand thin-wall socket to torque the ball
The Equal-i-zer 90-00-1201 is the 4-point system in this roundup, rated to 12,000 lb of trailer weight and 1,200 lb of tongue weight. Instead of a friction bar pressing on the tongue, it uses linkages on both sides of the head, and the same 6,000, 10,000, 12,000 and 14,000 lb ratings are available across the product line. It carries a limited lifetime warranty.
The difference shows up in the reviews. Owners credit the 4-point design with producing a noticeably calmer tow than 2-point systems, and several report that it largely eliminated sway on a short-wheelbase tow vehicle, which is the hardest geometry for any hitch. Seventy-three percent rate it five stars. On r/GoRVing and in the Forest River forums, Equal-i-zer is described as the most commonly re-purchased brand, the hitch you cannot go wrong with.
What to buy alongside the kit
This kit does not include a shank or a hitch ball, and the ball has a real specification attached. The head requires a 2-5/16 inch ball with a maximum 2-3/8 inch stud length, because a longer stud contacts the trunnions and can damage them. Most off-the-shelf trailer balls have a longer stud, so buy deliberately rather than grabbing whatever is in the truck box.
Torquing it correctly also requires Equal-i-zer’s thin-wall socket, since a standard socket can distort the head. Budget for the socket, the ball and the shank before you order, and remember the unit arrives in two packages, which catches people out if they plan an install for a Saturday morning.
Who should skip it
Skip it if you want a single-box purchase, because the parts list runs to three more items and a specialty socket. Skip it if your trailer is above 12,000 lb, since this specific kit is the 12,000 lb version. And skip it if you have never installed a weight distribution hitch, because owner reports describe more effort on first setup than a chain-style system, and mistakes here show up as an uneven rig.
9. Fastway e2 2-Point Sway Control Trunnion Hitch – Best Lightest Built-In Sway System
Fastway e2 2-Point Sway Control Trunnion Hitch, 92-00-1200, 12,000 Lbs Trailer Weight Rating, 1,200 Lbs Tongue Weight Rating, Weight Distribution Kit Includes Standard Hitch Shank, Ball NOT Included
Alloy steel
Powder coated
50 lb
12,000 lb trailer rating
1200 lb tongue weight
Pros
- Heaviest capacity class at only 50 lb
- Built-in 2-point sway control stays attached when backing up
- Eliminates the lever work of chain-style hitches
- Holds the front axle down for stable steering
Cons
- Hitch ball is not included
- Drop bar may be needed on a tall truck
- Powered front jack is generally needed to load the bars
The Fastway e2 does something none of the other hitches here manage: it delivers a 12,000 lb trailer weight rating and 1,200 lb of tongue weight capacity at 50 lb. That is roughly half the weight of the alternatives in this class, and it is the reason solo hitters keep coming back to trunnion systems with built-in sway control.
The sway control is integrated into the head as a 2-point system, so you never have to remove it to back up or take a tight turn, in any weather and at any angle. Owners report a level ride, strong sway control when passing semis, and a front axle that stays firmly on the ground. A standard hitch shank is included, the ball is not, and the warranty is 10 years limited. Round bar versions and 6,000, 8,000 and 10,000 lb ratings are also produced.
What 50 lb changes about a tow setup
Weight is the underrated issue in this category. Forum owners repeatedly describe hitches in the 89 to 137 lb range as impossible for one person to wrestle in and out of a receiver, particularly for anyone with back or shoulder problems. At 50 lb with a ball included separately, this is the one on the list that a single owner can realistically handle on their own.
The trunnion design also removes greasing from the schedule entirely, which matters for a trailer that gets used seasonally. The cost is setup precision: bar height has to be matched to the vehicle and trailer, and a powered front jack is generally needed to lift trailer and truck together far enough to insert the bars.
Who should skip it
Skip it if your trailer is above 12,000 lb loaded. Skip it if you do not have a powered front jack, because levering the trunnion bars into place by hand is where setups go wrong. And skip it if you want the stronger 4-point or active sway performance, since a 2-point friction design is the ceiling on this unit.
10. Camco Eaz-Lift ReCurve R3 Weight Distribution Hitch Kit – Best for Quiet Towing
Camco Eaz-Lift ReCurve R3 Weight Distribution Hitch Kit, 1200 lb, 48753-A
High-carbon steel
89 lb
14,000 lb max GTWR
1400 lb max tongue weight
2-5/16 inch ball included
Pros
- Top-loading spring bars install fast with no greasing
- Adjustable sway clamp with on and off feature for backing
- No clunking or creaking over typical road surfaces
- Superior ground clearance
- 2-5/16 inch ball included
Cons
- Warranty is 5 years
- the shortest in this roundup
- A-frame bracket can tilt under load for some owners
- Instructions are confusing and bar angle needs adjusting after first install
The Camco Eaz-Lift ReCurve R3 is rated for 1,400 lb of maximum tongue weight and 14,000 lb of maximum GTWR, with the included 2-5/16 inch ball rated to 15,000 lb, all in an 89 lb high-carbon steel package. That places it alongside the Andersen 14K and the CURT 17063 in capacity, with the 1,400 lb tongue figure matching the top of that class.
Its distinguishing feature is the patented top-loading spring bar design. Bars load from above rather than being levered into position, so setup is faster, no grease is needed at all, and the package carries better ground clearance with less physical effort during installation. The adjustable sway clamp takes a quick bolt turn and has an on and off feature, so you can disable it for backing and low-grip conditions. The design also avoids metal-on-metal contact, which is where clunking and creaking normally come from.
What the no-noise design actually fixes
Owners report markedly less bounce and sway on heavy trailers, often describing a night-and-day difference, and quiet operation is consistently the word used most often. A conventional friction hitch drags pads along the tongue every time you pull out of a driveway, and that noise is the single most common complaint owners raise about other brands here. Seventy-eight percent rate it five stars.
The adjustable sway clamp is a genuine safety feature rather than a convenience. Low-grip surfaces, a steep driveway and backing are exactly the situations where you may want sway control disengaged, and a single bolt turn is the difference between doing that and dismantling the front of the hitch.
Who should skip it
Skip it if warranty length drives your decision, because five years is the shortest here against limited lifetime coverage on several alternatives. Skip it if your truck has a bottom-mounted coupler that will not clear the hitch head. And skip it if you are not willing to re-check and adjust the bar angle after the first install, because a few owners reported the A-frame bracket needing alignment once loaded.
Heavy-Trailer Capacity Tiers: Which One Fits Your Trailer
When I sort the whole list by the trailer actually being towed, the pattern is clear. The 10,000-14,000 lb tier covers most loaded triple-axle travel trailers and mid-size cargo haulers, and it is where the CURT 17063, the CURT 17057 MV, the Andersen 14K and the Camco ReCurve R3 all land. All four rate 1,200 to 1,400 lb of tongue weight.
The 12,000 lb group is the entry point for heavy trailers and the category where weight matters most. The Husky 30849, the Equal-i-zer 4-point and the Fastway e2 all sit here, and the spread between them is dramatic: 50 lb for the Fastway against 104 lb for the Husky, with the same 1,200 lb tongue weight rating.
Above that, the 15,000-20,000 lb tier is for a genuinely heavy rig, and it is where the tow vehicle becomes the deciding factor. The CURT 17422 covers 15,000 lb on a standard 2 inch receiver. The Blue Ox BXW1500 covers 15,000 lb with 1,500 lb of tongue weight, and the Blue Ox BXW2000 covers 20,000 lb with 2,000 lb, but it needs a 2-1/2 inch receiver. If your truck is a half-ton, that top tier may simply not be available to you.
How to Choose a Weight Distribution Hitch for Heavy Trailers
Work through these seven steps in order, and the choice mostly makes itself.
1. Measure your loaded tongue weight
Do not guess, and do not use the GVWR sticker. Measure the actual tongue weight with your trailer loaded as you travel, ideally with a hydraulic tongue weight scale or the pipe-and-scale method owners describe on the forums. Set the trailer coupler on a set of scales in a level driveway, jack the trailer’s rear weight onto them, and read the difference. If the result is more than about half your truck’s payload, a weight distribution hitch is the right tool.
2. Match the GTW rating to the loaded trailer
Choose the hitch whose gross trailer weight rating sits comfortably above your loaded weight, and remember that the whole system’s rating is set by the lowest-rated component. A 20,000 lb hitch on a 14,000 lb trailer is fine; a 12,000 lb hitch on a 14,000 lb trailer is not. For heavy trailers, buying one tier above your typical loaded weight gives you room for gear, water tanks and a wet bath.
3. Pick round bar or trunnion bars
Round bar hitches need grease at the bar mounts and reward owners who follow the maintenance schedule. Trunnion hitches need no grease and are better for seasonal use, stored trailers and salt, but they take more care to set up because bar height has to be matched at install time. For a trailer that lives outdoors and gets used hard, trunnion is the lower-maintenance answer.
4. Choose your sway control system
Two-point friction control is the standard and the cheapest to maintain. Four-point designs, like the Equal-i-zer here, are calmer in crosswind and can be left attached when backing. Active link-arm systems sit above both and are the enthusiast choice for full-time cross-country towing, but they are a different purchase with different install demands. For most heavy-trailer owners, 4-point is the ceiling that makes sense.
5. Confirm your receiver class
Most light-duty and midsize trucks have a 2 inch Class III receiver. Heavy trucks often have a 2-1/2 inch Class IV opening. A 2 inch shank will not fit a 2-1/2 inch receiver, and a 2-1/2 inch shank will not fit a 2 inch receiver, so confirm the opening before you order. If the hitch you want needs a bigger receiver, the receiver itself may be the first thing you buy, and it has to be rated for the load too.
6. Check shank drop and hole count
Measure from the top of your receiver opening to the center of your trailer’s coupler, and match that to the shank’s drop or rise. Lifted trucks need more drop, and a low coupler needs a rise. Hole count matters more than most buyers expect: a 7-hole shank gives coarser adjustment than a 9-hole, and on a heavy trailer the difference between a level rig and a slightly nose-high one is obvious on the trailer’s own clearance.
7. Budget for the ball, the sway control and the tools
Plenty of premium hitches come without a ball, and some without a shank. Count those as separate items before you commit, and check whether your ball needs a specific stud length. A 2-5/16 inch ball matched to the hitch rating, a sway control bar, a torque wrench, and large sockets in the 1-1/8 inch and 15/16 inch sizes are the working kit for installation. A pre-torqued ball included in the box, as on the CURT models, saves both money and a common source of installation error.
Installing and Maintaining a Heavy-Trailer Weight Distribution Hitch
Installation needs more than a basic socket set. You will want a torque wrench capable of reaching roughly 450 ft-lb for the hitch ball and about 260 ft-lb for sway control bracket fasteners, plus 1-1/8 inch and 15/16 inch sockets for the hardware on the Camco and CURT-style systems. Owners on the forums also recommend a second pair of hands, because these units run from 50 lb to 105 lb.
The setup sequence matters more than the hardware. Torque the ball first, then set the shank hole closest to level, then attach both brackets and add chain links one at a time until the truck sits level or a touch nose-down. Drive a short loop, come back, and re-check ride height. If the bar angle is off, the Camco in particular may need a second adjustment after the first loaded trip.
For maintenance, round bar hitches need grease at the zerks every time the trailer is used, or at minimum at every service interval. Trunnion hitches have no grease points. Either way, check the friction pads on a friction system for glazing, verify the ball mounting bolts, inspect the spring bars for cracks around the mounting points, and confirm the safety chains and breakaway cable are attached and free-running.
A short pre-trip habit pays for itself. Before every trip, run the coupler bolt to torque, confirm the safety chains are crossed and hooked, check that the breakaway cable is clear and attached, verify sway control is engaged and the clamp is torqued, and confirm nothing on the hitch is contacting the trailer or the ground. Owners note that the whole system should sit clear through a full turn in both directions.
Frequently Asked Questions
Which brand of weight distribution hitch is best for heavy trailers?
For most heavy trailers in the 10,000-15,000 lb range, the CURT 17063 is the safest all-round choice because it arrives with a pre-torqued ball, sway control kit #17200 and a flippable shank, and it carries by far the largest review base in the category. The Andersen 14K is the pick when you want the ball, brackets and hardware in one box, and the CURT 17422 covers 15,000 lb trailers with grease-free trunnion bars.
What is the best type of trailer hitch for heavy towing?
A weight distribution hitch with integrated sway control is the best type for heavy towing, because it spreads tongue weight across the truck’s front axle and the trailer’s axles while resisting side-to-side movement at the same time. Among the systems compared here, a 4-point design such as the Equal-i-zer gives the calmest ride, while trunnion-bar models like the Fastway e2 need no maintenance and weigh the least.
Which weight distribution hitch is better, Curt or Equalizer?
It depends on the trailer. CURT kits usually include the ball, shank and sway control in one box, as the 17063 and 17422 do, which makes CURT easier for a first heavy-trailer install. Equal-i-zer builds a 4-point sway system that owners report is calmer in crosswind and on short-wheelbase tow vehicles, but the shank and ball are sold separately and the ball needs a specific short stud length.
Which trailer hitch is the strongest?
Among the hitches reviewed here, the Blue Ox BXW2000 carries the highest ratings at 2,000 lb of tongue weight and 20,000 lb of maximum gross towing weight. Strength is never a single number, though, because the system rating is always limited by its weakest component, so your receiver, shank, ball and tow vehicle payload all have to be rated for the same load.
Do I need a Class IV receiver for a heavy trailer?
You need a 2-1/2 inch Class IV receiver only if the hitch you have chosen requires one. Most 12,000-15,000 lb hitches, including the CURT 17063, the CURT 17422, the Blue Ox BXW1500 and the Husky 30849, use a standard 2 inch Class III shank. The Blue Ox BXW2000 at 20,000 lb is the one here that needs the 2-1/2 inch opening normally found on three-quarter-ton and one-ton trucks.
How much tongue weight should a weight distribution hitch support?
Most loaded travel trailers sit at 10 to 15 percent of their gross weight on the tongue, so a 12,000 lb trailer typically places 1,200 to 1,800 lb on the ball. A weight distribution hitch is warranted once tongue weight passes about half your tow vehicle’s payload rating or when the rear of the truck visibly sags. Always verify with a real measurement rather than the GVWR sticker.
How do I set the chain links on a weight distribution hitch?
Set the shank hole closest to level first, then add chain links one at a time on both sides until the tow vehicle sits level or slightly nose-down with the trailer attached. Drive a short loop, return, and re-check the ride height. Trunnion-bar hitches skip the chain step and instead require the bar height to be matched to the vehicle and trailer at install time.
Can a weight distribution hitch fix rear axle sag?
Yes, if the sag is caused by tongue weight rather than a suspension problem. Restoring ride height by moving load onto the front axle is exactly what these hitches are designed to do, and they also reduce stopping distance, tire wear and sway. A weight distribution hitch cannot fix sag caused by a worn spring, an overloaded truck or a tire issue, and it cannot exceed your tow vehicle’s payload or GCWR limits.
Final Verdict: The Best Weight Distribution Hitches for Heavy Trailers
After working through ten heavy-rated hitches, the CURT 17063 is the best weight distribution hitch for heavy trailers in the most common weight class. It covers 10,000-14,000 lb of gross trailer weight, arrives with a pre-torqued ball, sway control kit and lift handle, and has the largest body of owner feedback of anything in this roundup at 1257 ratings.
Match your trailer instead of buying the biggest one you can find. The Husky 30849 for a 12,000 lb trailer, the Andersen 14K when you want everything in one box, the CURT 17422 or Blue Ox BXW1500 for 15,000 lb, the Camco ReCurve R3 if quiet running matters most, the Equal-i-zer 4-point if sway in crosswind is your main enemy, and the Blue Ox BXW2000 only if your truck has a 2-1/2 inch receiver and the payload to back it up.
Measure your real tongue weight, check the receiver class, and read the door jamb. Get those three right and the choice above takes about five minutes.
